Online help for 4-Channel Data Logger on myDatalogEASY IoTmini
General product information
The 4-Channel Data Logger is a data logger designed for stand-alone operation. It is used to determine, process and transmit analogue and digital signals. Thanks to the 4 universal inputs, which can be operated in different analogue and digital modes, the 4-Channel Data Logger is compatible with a large number of different sensors. The sensors can be connected directly, without additional energy sources. The energy supply is then provided from the 4-Channel Data Logger , which, depending on the power supply unit used, can itself be operated without mains supply. In addtition to the switchable and selectable sensor supply, the 4-Channel Data Logger is also equipped with an isolated switch contact and a switchable 3,3 V supply. These can be used to control actuators. An interface for connecting a PT100 or PT1000 is moreover available following the chargeable release. By using the mobile network to transfer data to the server, the site rarely has to be physically accessed and the data can be accessed at all times.
Product characteristics:
- Universal inputs for digital and analogue signals
- Switchable and adjustable supply voltage for sensors
- Isolated switch contact
- Internal battery compartment
- Battery, rechargeable battery or direct power supply
- Exactstate of charge of the battery using Coulombmethod
- Compact design
- Integrated charge control
- Configurable via web interface
- Device time synchronised with the sever
- Hardware real-time clock
- Very low commissioning & operating costs
- Integrated durable SIM chip
Application:
- Level measurement
- Flow measurement
- Temperature measurement
- Transmission of measurement values of probes
- Remote meter reading
This online help is applicable from:
Frequently asked questions (FAQs)
What do the blink codes mean?
| Blink code | Colour | Description |
|---|---|---|
| 0x | --- | Transport lock (transmission OFF, measurement OFF) |
| 1x | green | Last connection OK |
| 2x | red | Last transmission faulty |
| 7x | red | Network block/no matching provider |
| 8x | red | No mobile network |
| 9x | red | incorrect PIN/1 attempt remaining |
| 10x | red | No mobile network connection |
| 11x | red | No server available |
| 12x | red | Faulty SIM chip |
A detailed explanation is provided in section Three colour status LED.
How do I initiate a connection?
|
| How-To-Video: Triggering Aloha transmission mode |

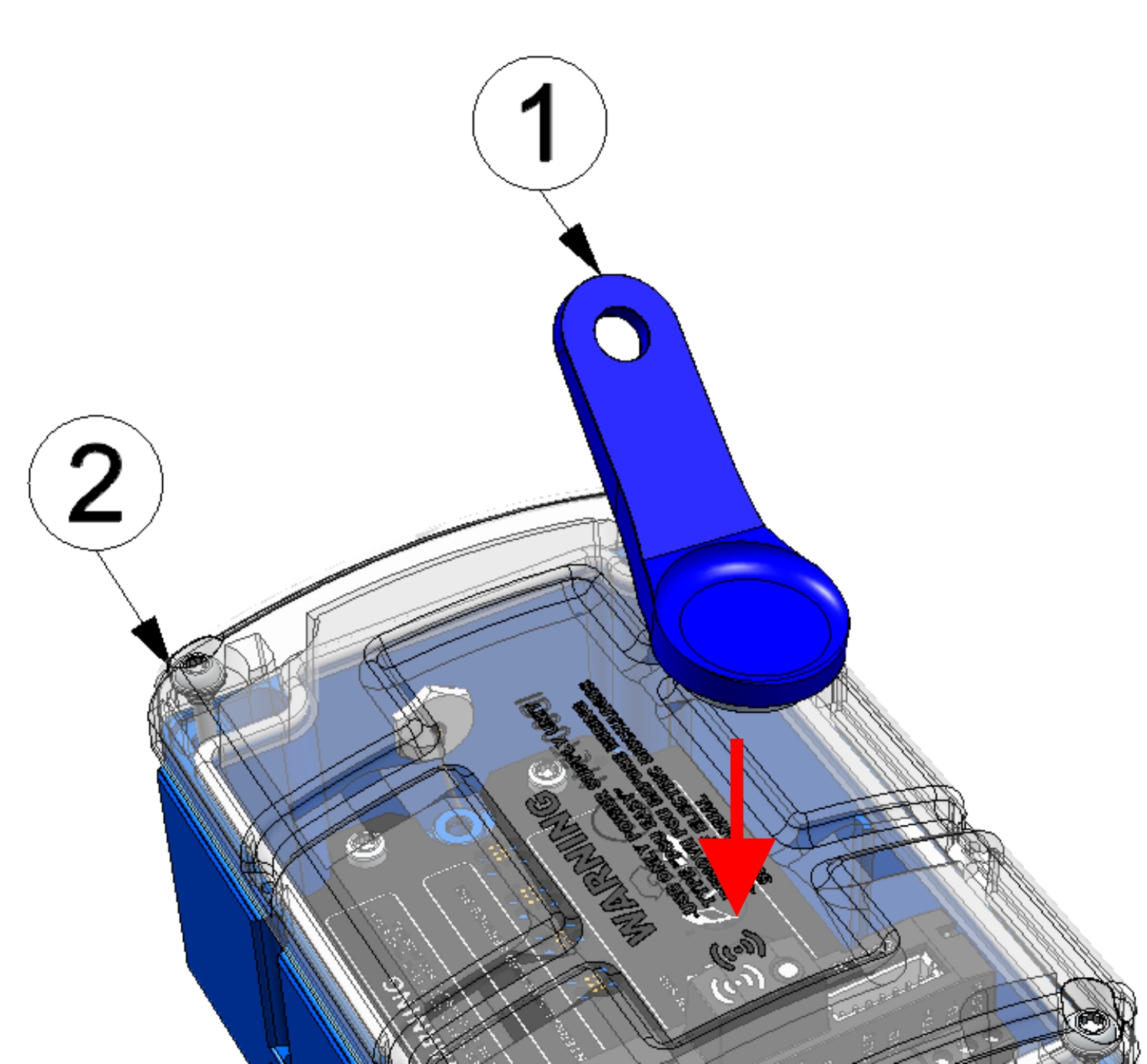

Tap theMDN Magnet (206.803) for at least 3 sec. on the position shown in the following figure.
| 1 | MDN Magnet (206.803) | 2 | 4-Channel Data Logger |
How do I activate the output of the error codes / status codes?
Briefly (approx. 1 sec.) tap theMDN Magnet (206.803) on the position shown in the following figure.
How do I connect a 0/4-20 mA sensor?
Connection examples (digital, open collector output, 0/4...20 mA, 0...2/10 V)
| 1 | Main terminal block of the 4-Channel Data Logger | 4 | 2-wire mA sensor |
| 2 | Isolated relay contact | 5 | 3-wire mA sensor or 3-wire U-sensor |
| 3 | Sensor with open collector output |

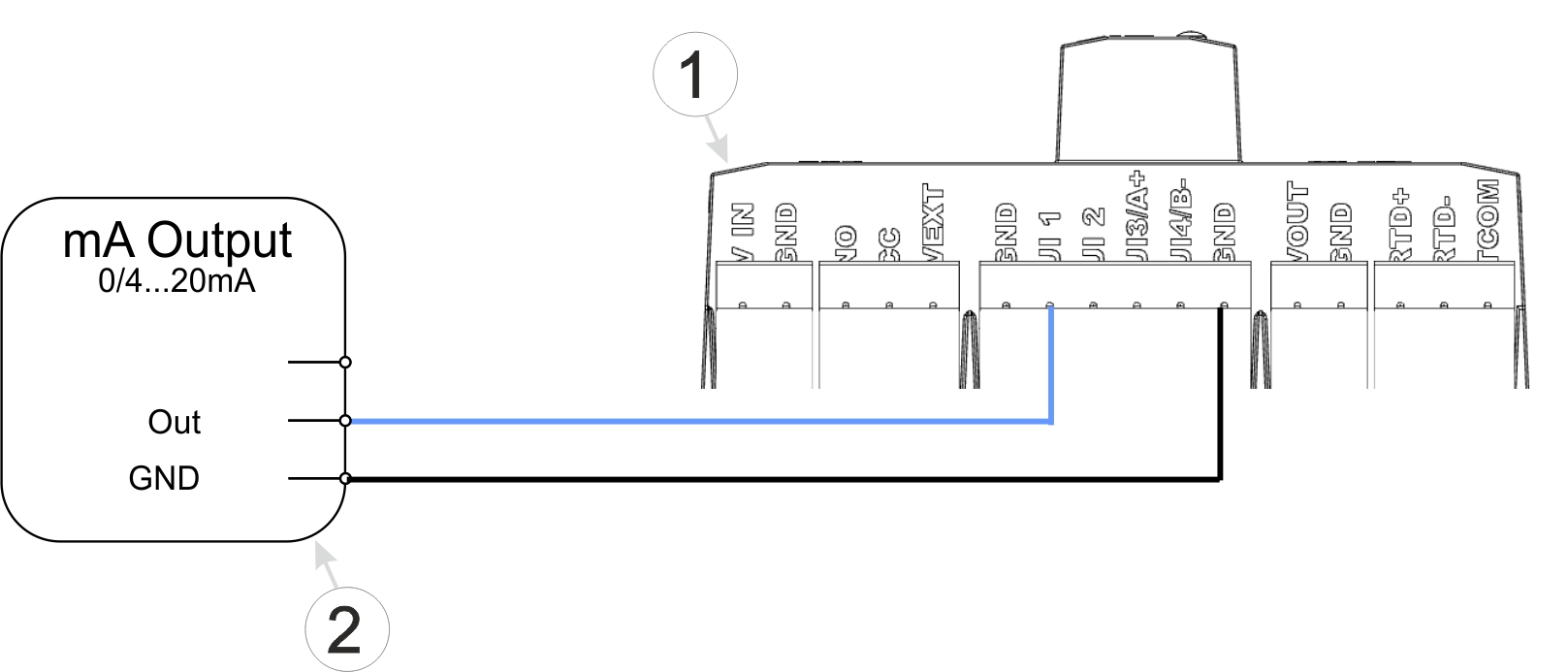

Connection examples (active mA output)
| 1 | Main terminal block of the 4-Channel Data Logger | 2 | Active mA output, transducer or isolation transformer |
A detailed explanation is provided in section Connecting the sensors, actuators and power supply.
How do I deactivate the 4-Channel
Data Logger again?
Activate transport mode by setting the "operating mode" in the "Basic settings" configuration section (see Basic settings) to "transport". After that, initiate a connection (see Aloha transmission mode) to transmit the changed configuration to the 4-Channel Data Logger .
A detailed explanation is provided in section Storage of the product.
