Aligning the BLE Radar

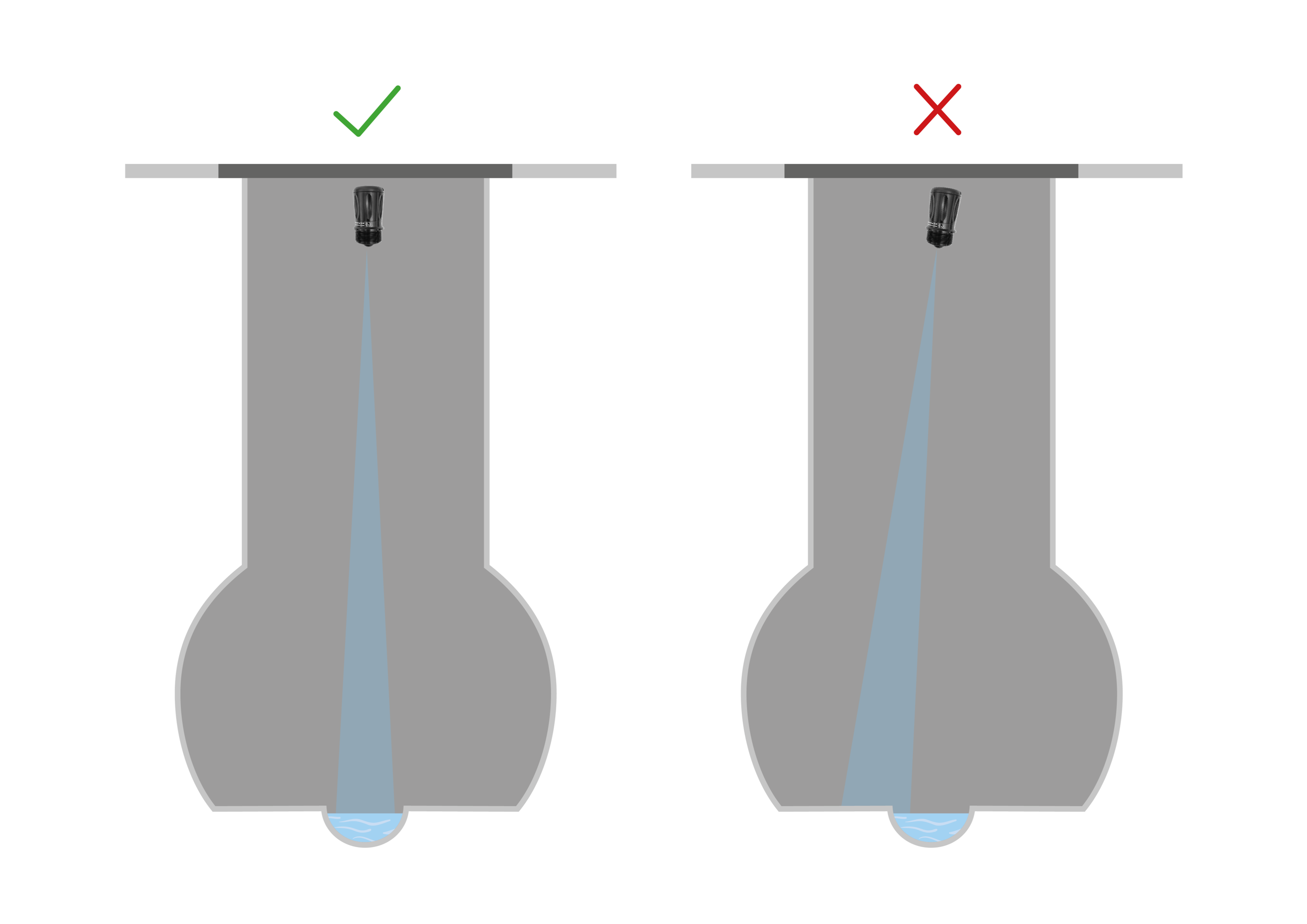

For the installation of the BLE Radar , mounting kits for various installation situations are available (see Assembly sets). The alignment of the BLE Radar with the flume to be measured is carried out for all flexibly adjustable mounts using the procedure described below. These can basically be divided into flexibly adjustable mounts and fixed mounts. Due to the fixed angle of 45° of the flow velocity sensor mount and the absence of joints, the rigid mounts offer less flexibility in aligning the sensors to the channel than the flexible mounts. However, they are significantly less sensitive to changes in sensor alignment due to the impact of external factors during operation.

The final alignment of the BLE Radar with the flume to be measured is carried out for all flexibly adjustable mounts using the procedure described in section Flexibly adjustable mounts. When using a fixed mount, the procedure described in section Fixed mounts is to be used.
