Wall mounting (flexibly adjustable mount)

For the installation to a wall by means of screw fitting, one of the mounting kits listed in the table below is required. The mounting kits differ only in the length of the swivel arm included. This also determines the distance between the wall and the centre of the sensor recess.

  Radar wall mounting kit Radar wall mounting kit long
Item number 301480 400406
Length of the swivel arm 140 mm 390 mm
Wall to centre sensor recess 250 mm 500 mm
Note: Avoid touching the spherical joint and ensure that the ball of the spherical joint is also not contaminated otherwise with grease, oil or lubricants of any kind. A such contamination reduces the friction between the ball and the swivel arm, which results in the fact that a retained stable alignment can no longer be guaranteed. In case of contamination, the ball can be cleaned using isopropyl or other degreasing cleaning agents.

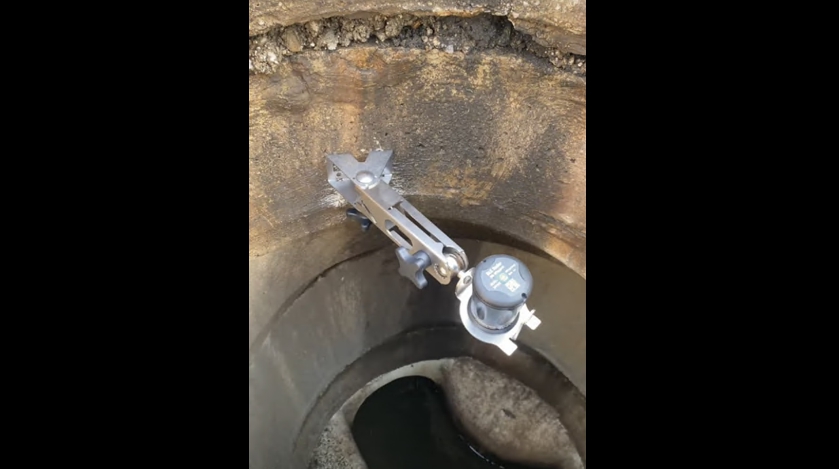

How-To-Video: Wall mounting by means of screw fitting

Wall mounting

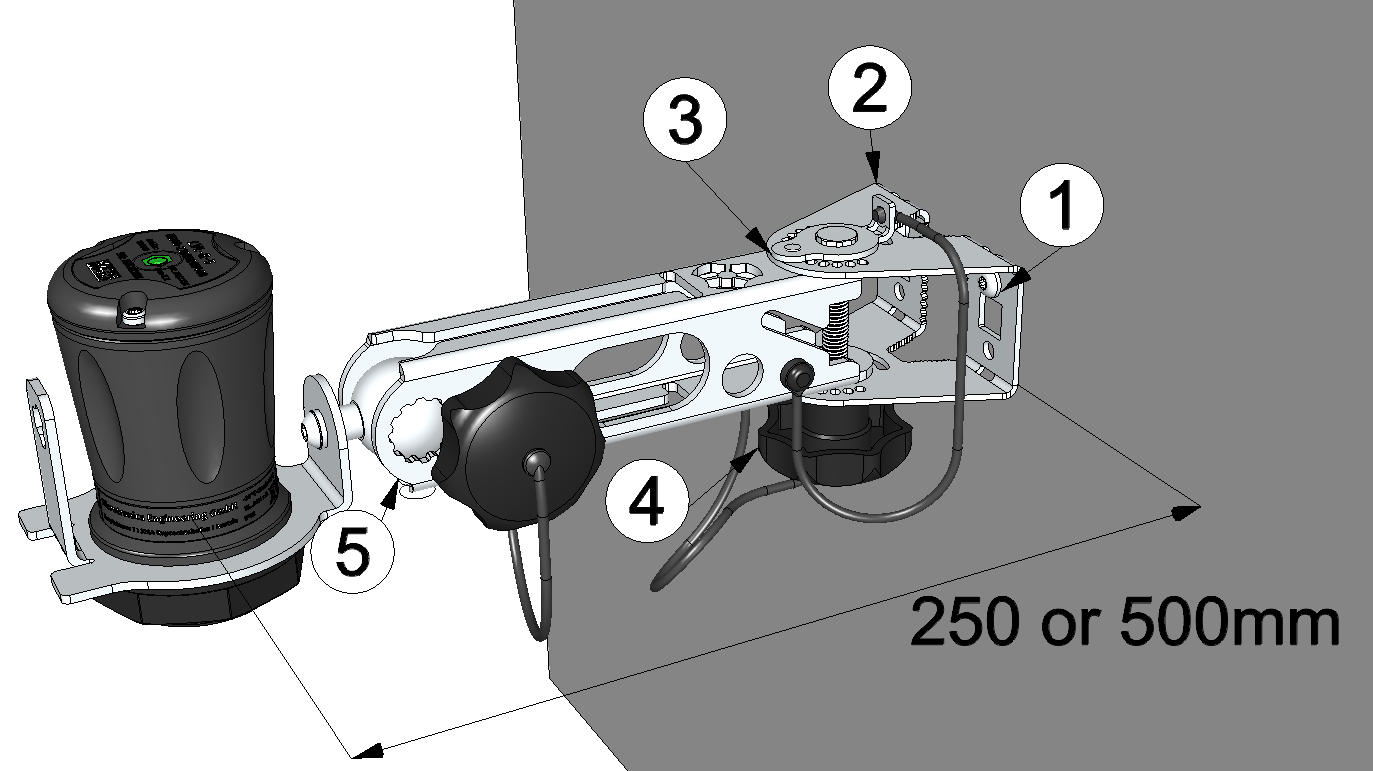

1 Lens head screw ST3,5x32 Torx 15 4 Clamping screw
2 Flange for wall mounting 5 Swivel arm
3 Bolt head fitted with a lock pin
  1. Drill two holes with a diameter of 6mm and a depth of 30mm min. (see illustration Flange mounted on the wall) at the distance of 52.5mm in the wall.
  2. Insert one of the wall plugs included in the scope of delivery of the mounting kit in each hole drilled before attaching the flange to the wall using the screws again included in the scope of delivery.

    Attaching the flange to the wall

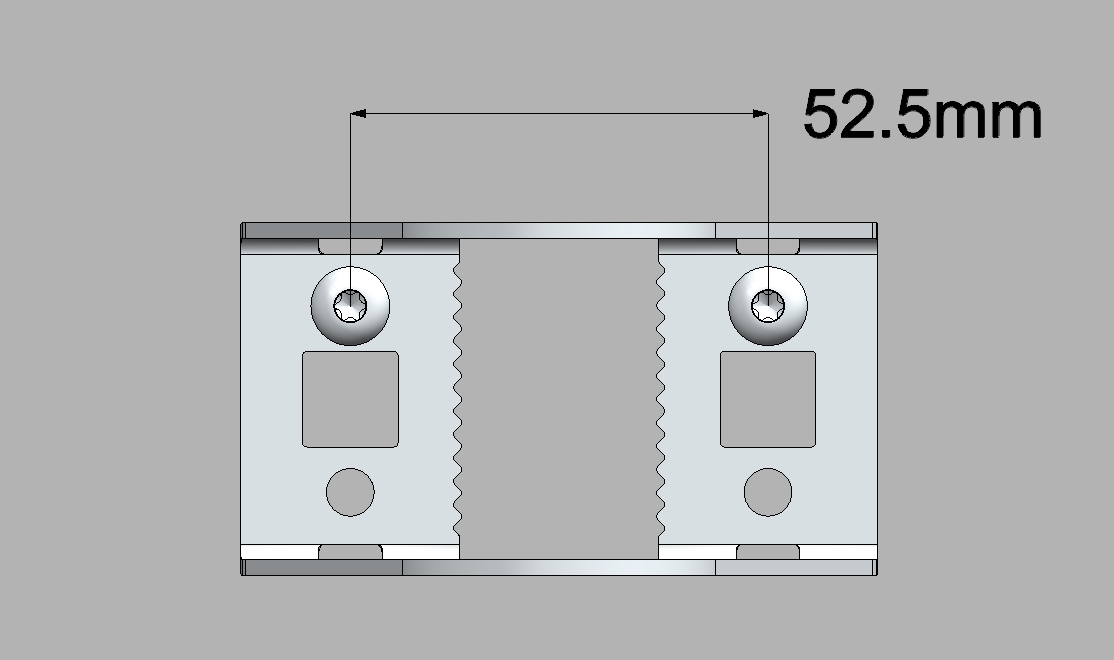

    Flange mounted on the wall

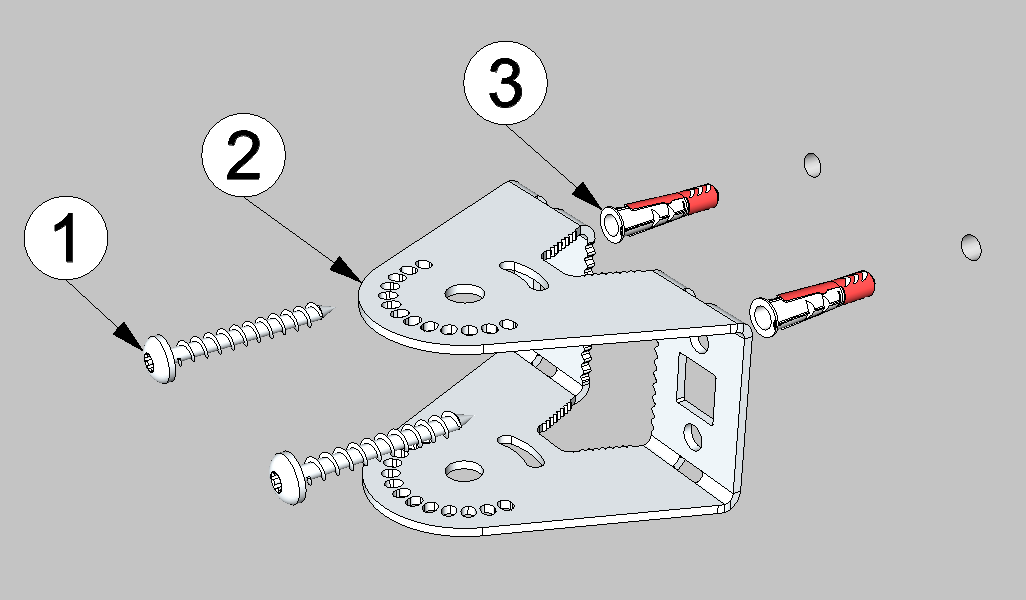

    1 Lens head screw ST3,5x32 Torx 15(included in the scope of delivery of the mounting kit) 3 Plugs 6x30 (included in the scope of delivery of the mounting kit)
    2 Flange for wall mounting
  3. Attach the swivel arm with the flange already mounted on the wall using the clamping screw (consisting of the star knob and the coach bolt fitted with a lock pin in the bolt head).

    Thanks to the locking pin that is fitted on the bolt head and the holes on the front edge of the flange, the swivel arm can be locked in 15° increments at an angle of up to 90° relative to the centre axis. This applies to both left and right rotation. If a different angle is required, you can also insert the screw so that the locking pin engages in the elongated hole in the flange. In this case, however, the resistance to twisting of the swivel arm is determined only by the clamping force generated by the clamping screw.

    Tip: The swivel arm is designed in such a way that the orientation of the clamping screw (star knob at the top or bottom) is irrelevant.

    Attaching the swivel arm to the flange

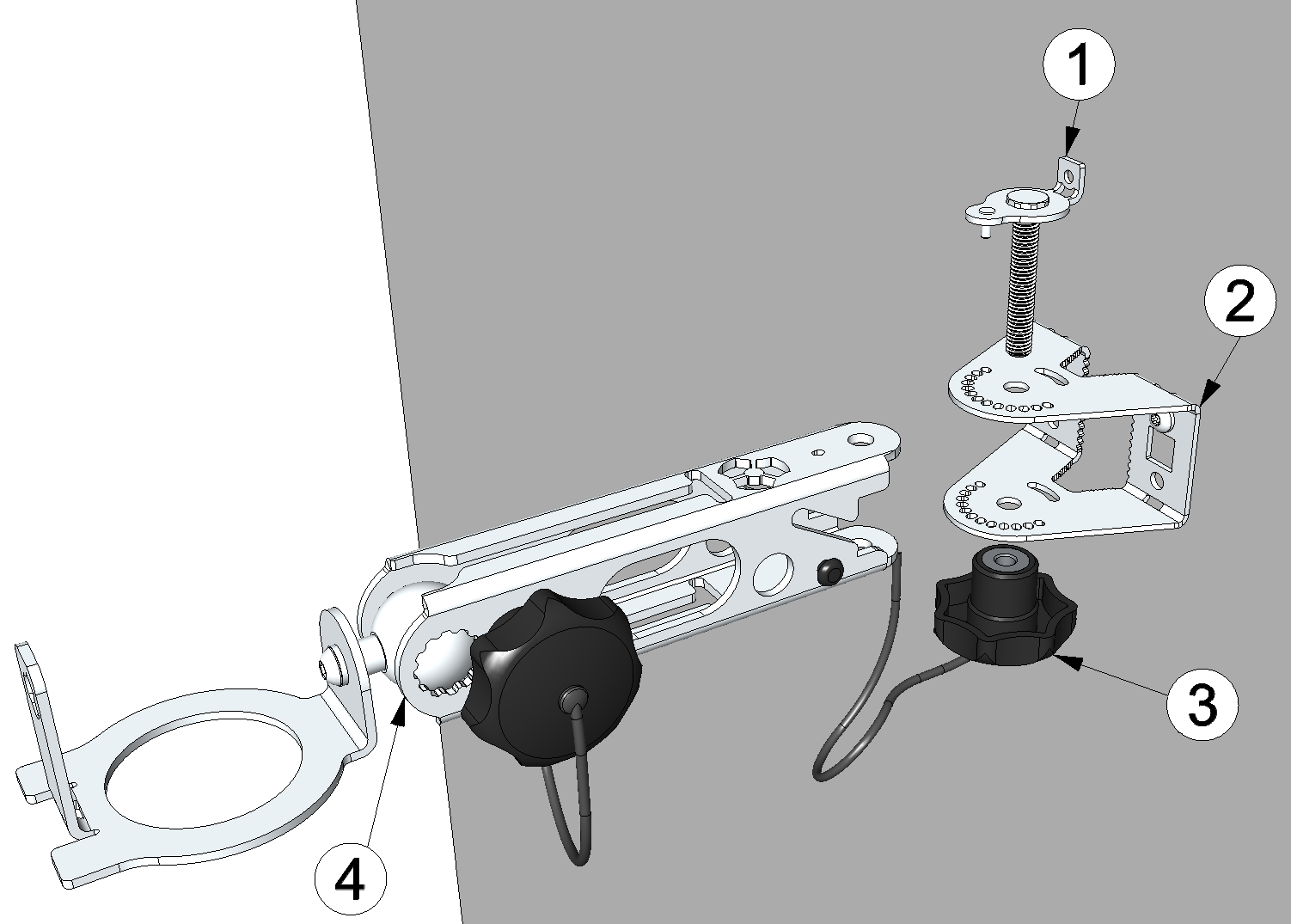

    1 Coach bolt fitted with a lock pin in the bolt head 3 Star knob
    2 Flange for wall mounting 4 Swivel arm
  4. Insert the BLE Radar in the sensor recess of the swivel arm and align it correctly. Detailed instructions on this are provided in chapter Flexibly adjustable mounts.
