Online help for BLE Gauge
General product information

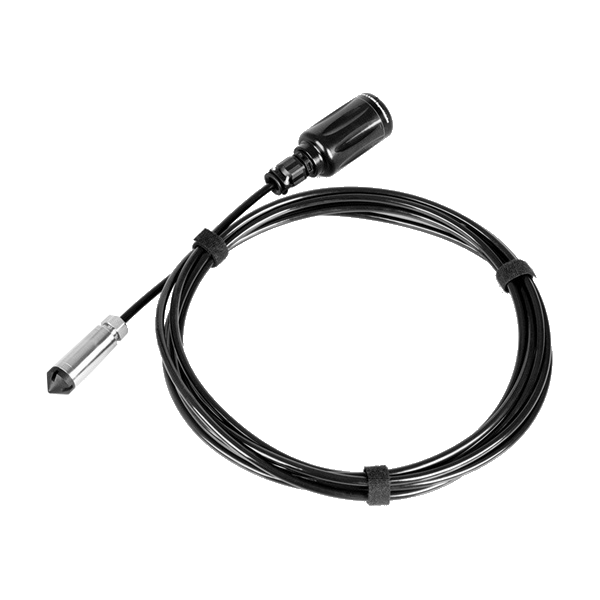

Beim BLE Gauge is a compact, portable sensor for recording the fill level of fresh, dirty or grey water. The measurement is carried out using a piezoresistive pressure sensor that has to be immersed in the medium to be measured. Thanks to the internal battery and to the data transmission via local radio connection, the device works independently. The ultra low power technology allows for a long battery life time (up to 5 years) with both short measurement intervals and high resolution.
Product specifications:
- ATEX certified for zone 1
- High resolution
- Large measurment range
- Short measurment interval
- Compact dimensions
- Up to 5 years battery life due to ultra low power technology
- Data transmission via local radio connection
- Very low commissioning and operating costs
Fields of application:
- Stormwater management ponds
- Sewage systems and industrial plants
- Municipal water and wastewater systems
Frequently asked questions (FAQs)
How do I activate the BLE Gauge ?
The BLE Gauge does not have a special transport mode. I.e. it is always ready for operation and does not have to be activated.
How do I transfer the determined mounting height to the BLE Gauge ?
Using a compatible data logger, the values for mounting height and trimming can be transmitted to the BLE Gauge . Both values are taken into account when calculating the fill level (see Determining the fill level).
With a Jellox for instance, mounting height and trimming can be set via the configuration section "Remote measurement channels".
How does the BLE Gauge calculate the fill level?
Fill level = (installation height + output value of the pressure sensor) + trimming
|
Calculation of the measurement value "Fill level" |
|
How do I deactivate the BLE Gauge ?
The BLE Gauge does not have a special transport mode and therefore does not need to be deactivated.
A more detailed explanation is provided in section Storage of the product.
