Determining the fill level

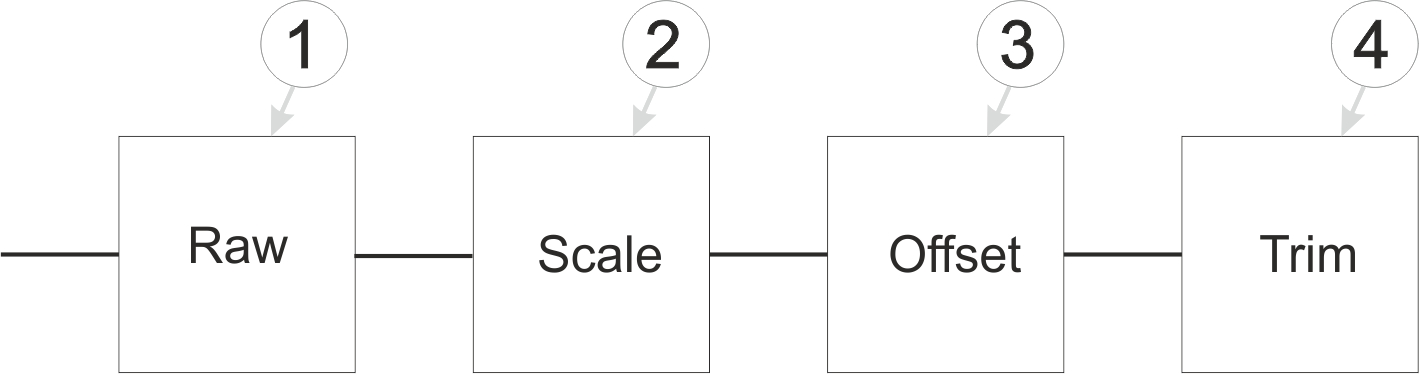

Diagram of how the "Level" measurement value is generated
| 1 | Generation of the raw value, which is the relative pressure (see Determining the raw value (relative pressure)) | 3 | Adds the value entered via the "Sensor Offset" configuration parameter to the fill level (see Taking the installation height into consideration) |
| 2 | Conversion of the raw value (relative pressure) to the fill level (see Calculating the fill level) | 4 | Adds the value entered via the "Trimming" configuration parameter to the fill level that is corrected by the "Sensor Offset" (see Taking the trimming into consideration) |
Fill level = (installation height + output value of the pressure sensor) + trimming
|
Calculation of the measurement value "Fill level" |
|
