Wall mounting
The assembly loops required for wall mounting are already attached to the myDatalogEASY IoT ATEX upon delivery.
| 1 | myDatalogEASY IoT ATEX | 4 | Lining disc (optional, min. diameter: 12 mm) |
| 2 | Screw (max. diameter: 4 mm) | 5 | Metal bracket to protect the connectors |
| 3 | Assembly loop |

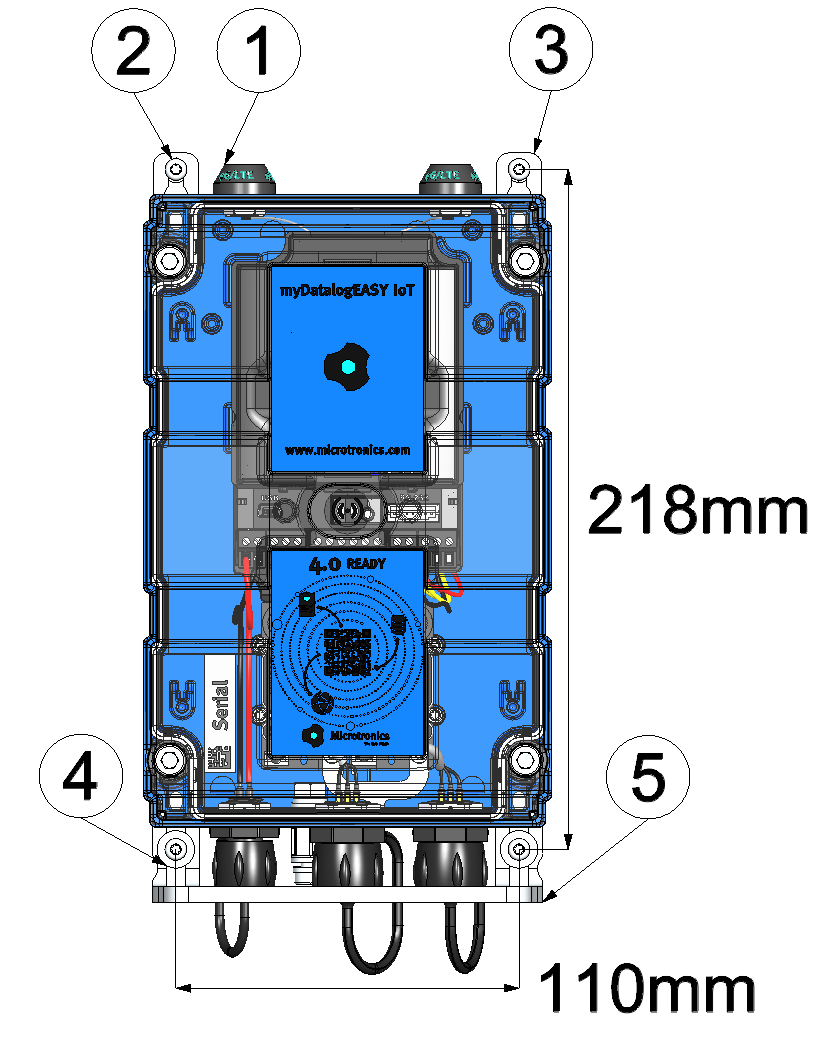

- Drill the four holes for mounting in accordance with the dimensions specified in figure Wall mounting. The diameters are determined by the screws that are being used and any wall plugs that may be required.
- If necessary, insert a wall plug into each of the four drilled holes before you screw the myDatalogEASY IoT ATEX to the wall with the attached assembly loops (see Wall mounting). Use suitable lining discs, if required. This specifically applies to the two screws that are inserted through the slot of the metal holder to protect the connections.
