Pipe mounting

For the installation on a pipe the optional accessory "Pipe mounting set 30-250 mm (301191)" is required. If the myDatalogEASY IoT ATEX and the Pipe mounting set 30-250 mm are ordered together, the mounting loops included in the standard scope of delivery are replaced by those for the installation on a pipe and are mounted on the myDatalogEASY IoT ATEX prior to shipment.

Note: The equalisation rail on the front of the myDatalogEASY IoT ATEX connects the earth terminal to the lower mounting bracket. If you mount the device on a conductive, earthed pipe, no additional earthing is required.

Pipe mounting

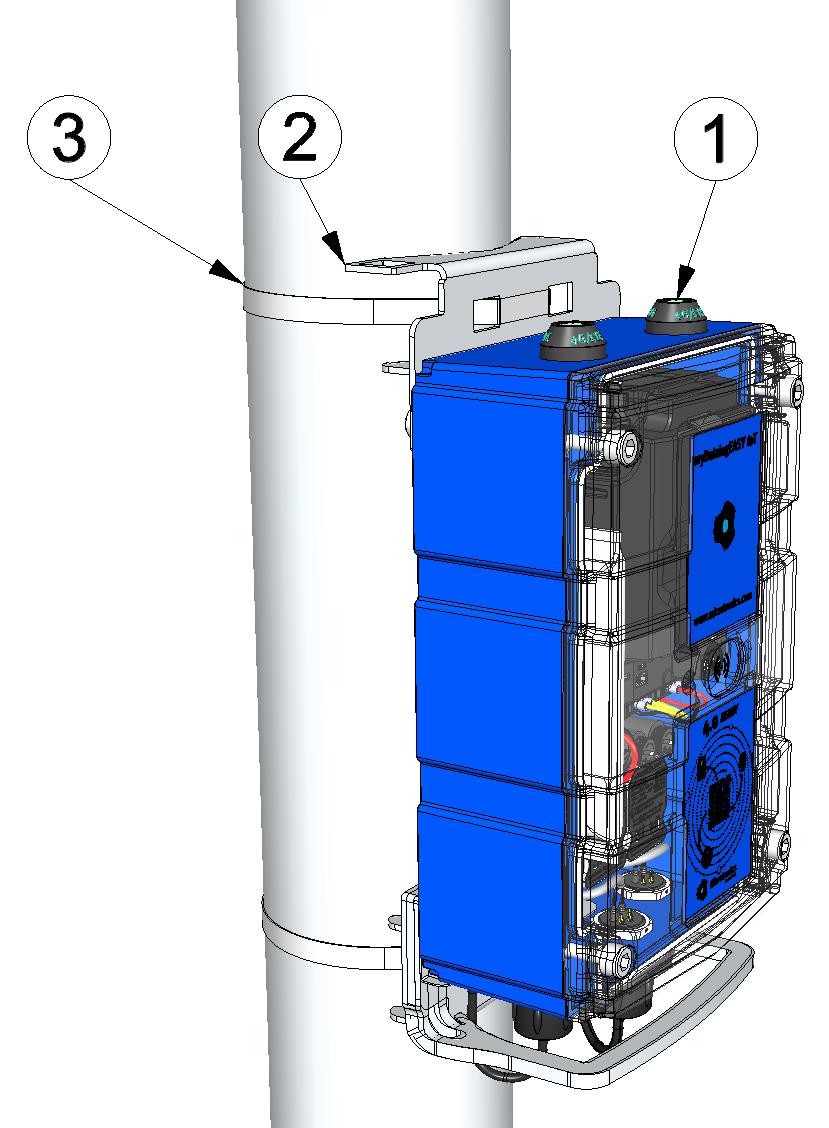

1 myDatalogEASY IoT ATEX 3 Tightening strap (for pipe diameter 30-250 mm)
2 Loops for pipe mounting (for pipe diameter 30-250 mm)
  1. Thread the tightening straps (3) through the appropriate openings in the mounting loops (2).
  2. Position the myDatalogEASY IoT ATEX with attached mounting loops (2) on the pipe and use the provided tightening straps (3) to fasten the myDatalogEASY IoT ATEX .
