Attaching the housing for outdoor installation to a pipe
To attach the "Housing ATEX 300x200x150mm for outdoor mounting (301238)" to a pipe, the " Pipe mounting set for housing 300x200x150mm (301184)" is required as an additional accessory . If the myDatalogEASY IoT ATEX , the Housing ATEX 300x200x150mm for outdoor mounting and the Pipe mounting set for housing 300x200x150mm are ordered together, the myDatalogEASY IoT ATEX is installed in the housing for outdoor installation (incl. connection of antenna cables) and the brackets for the installation on a pipe are mounted on the housing prior to shipment.

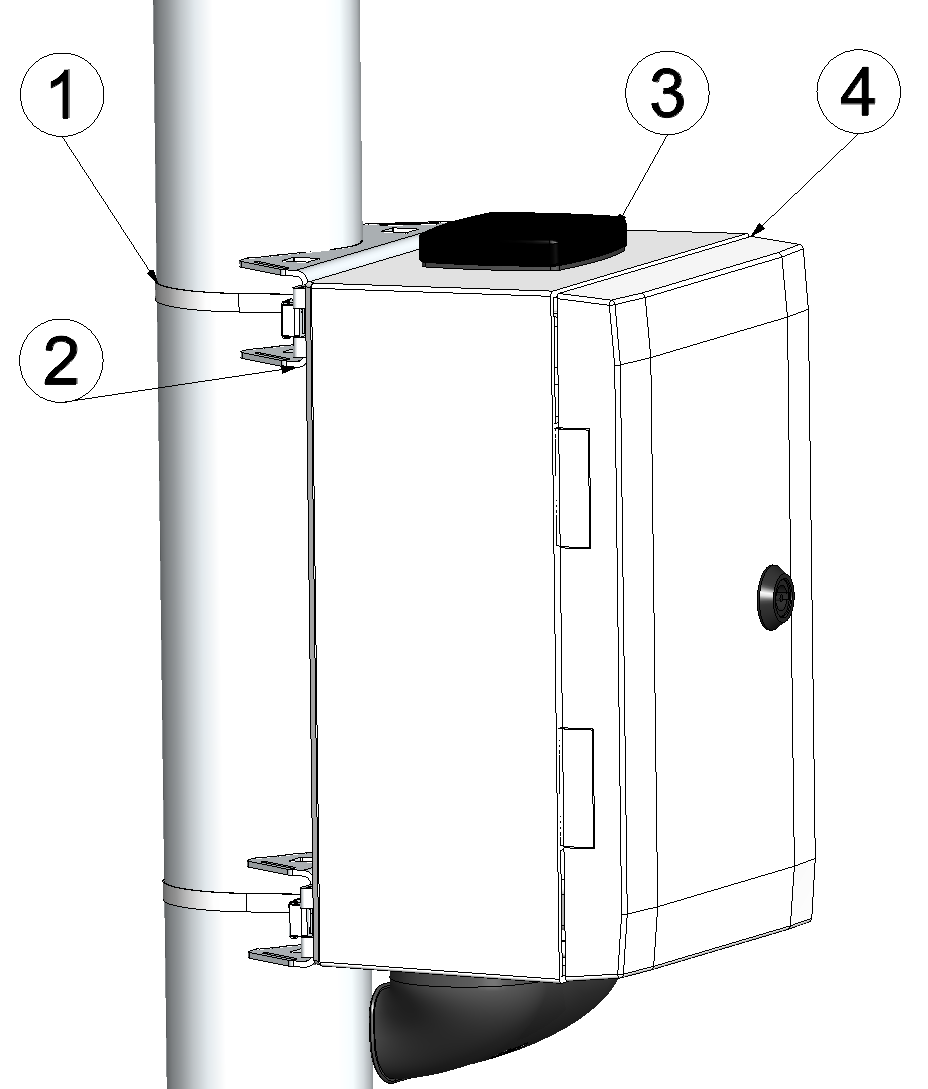

Pipe mounting
| 1 | Tightening strap (for pipe diameter 60-300 mm) | 3 | Multiband antenna |
| 2 | Bracket for pipe mounting (for pipe diameter 60-300 mm) | 4 | Housing ATEX 300x200x150mm for outdoor mounting |
- Position the Housing ATEX 300x200x150mm for outdoor mounting with the installed mounting brackets (2) on the pipe and use the tightening straps (1) icluded in the scope of delivery to attach the Housing ATEX 300x200x150mm for outdoor mounting .
