Assembly in a control cabinet

Antennas mounted directly on the myDataconC3 are not suitable for assembly within a control cabinet as the mobile network signal is shielded by the metal of the cabinet. In this case, the manufacturer recommends using the Flat antenna Disc Multi Band SMA-M 1,5m (301362) that are available as accessories.

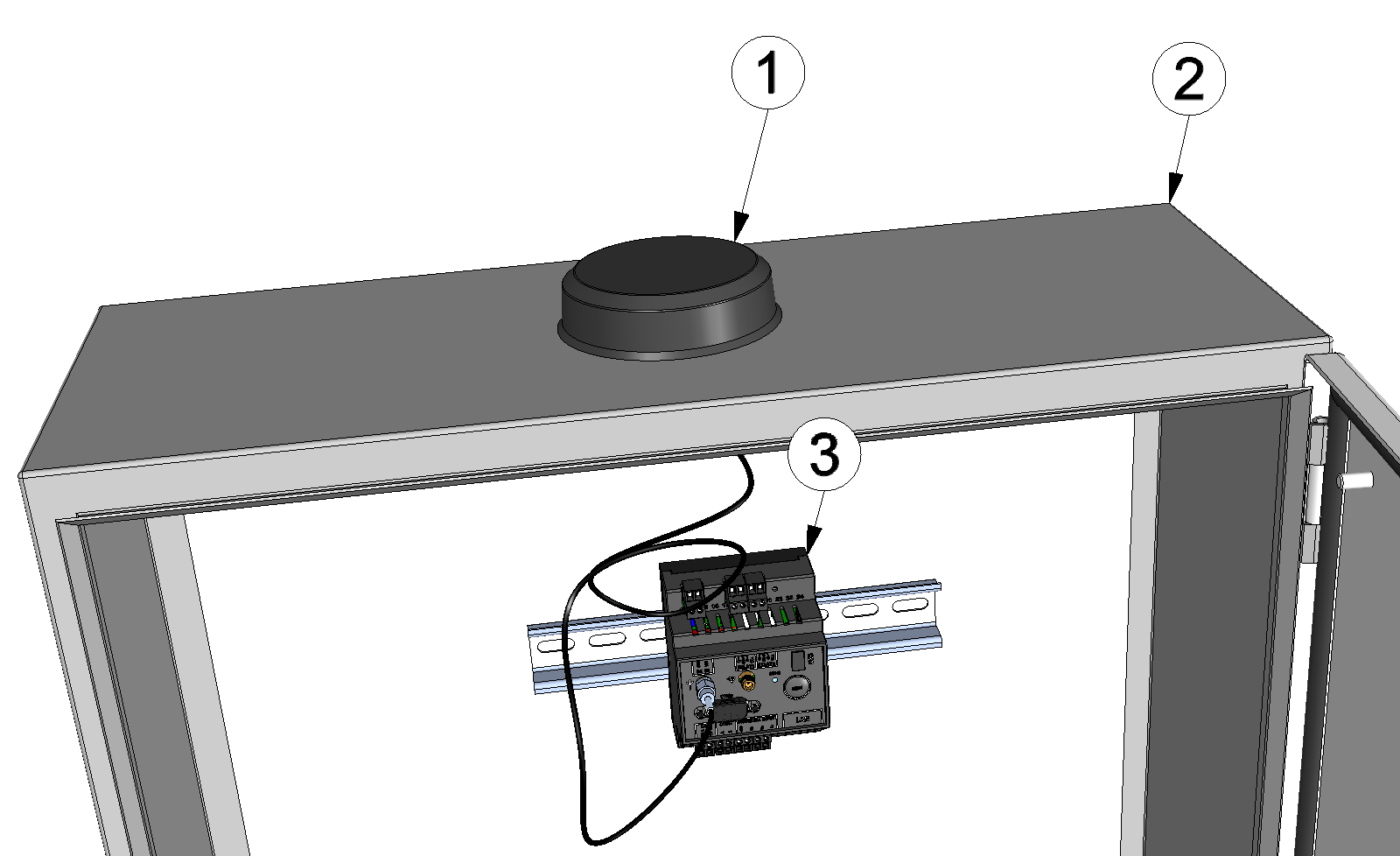

1	Flat antenna Disc Multi Band SMA-M 1,5m (301362)	3	myDataconC3
2	Control cabinet
