Device labelling

The specifications in this user manual apply exclusively to the measurement system "myDataconC3+ ", which is composed of the following components:

  • IoT application "myDataconC3+"
  • Data logger "myDatalogC3xx"
  • Input extension "myDatalogC3e 12UI/2Rel " (optional)
  • Output extension "myDatalogC3e 3mA/6Rel " (optional)



The type plate of the myDatalogC3xx is located on the right side of the device and contains the following specifications:

  • Type designation
  • Serial number
  • Item number
  • Voltage supply specifications
  • Week and year of production
  • Country list profile of the SIM chip
  • Environmental conditions during operation
  • Degree of protect
  • Hardware revision
  • Name and address of the manufacturer
  • Logo for the EU WEEE Directive
  • CE marking

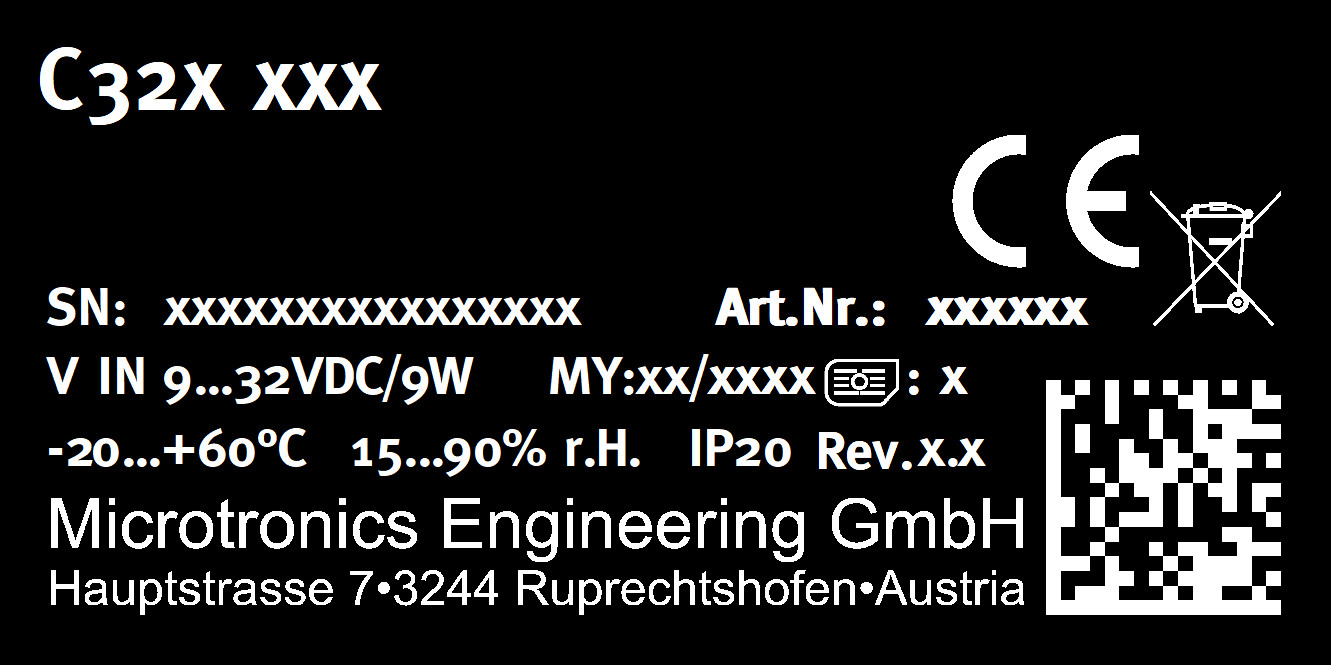

Type plate myDatalogC3xx

Tip: This symbol indicates the country list profile (see www.microtronics.com/footprint) of the SIM chip installed in the device.



The type plate of the myDatalogC3e 12UI/2Rel is located on the right side of the device and contains the following specifications:

  • Type designation
  • Serial number
  • Item number
  • Voltage supply specifications
  • Week and year of production
  • Environmental conditions during operation
  • Protection class
  • Hardware revision
  • Name and address of the manufacturer
  • Logo for the EU WEEE Directive
  • CE marking

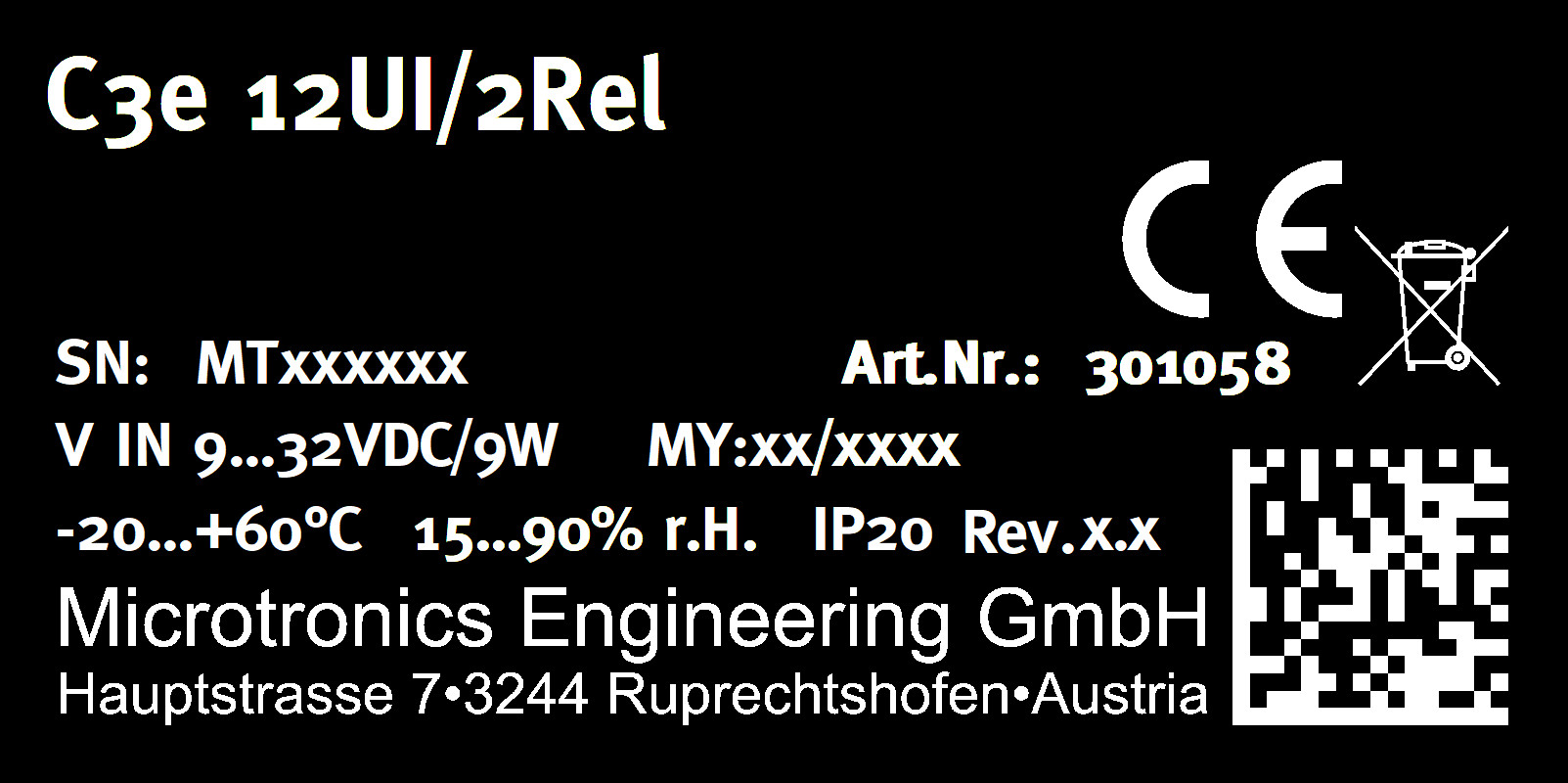

Type plate myDatalogC3e 12UI/2Rel



The type plate of the myDatalogC3e 3mA/6Rel is located on the right side of the device and contains the following specifications:

  • Type designation
  • Serial number
  • Item number
  • Voltage supply specifications
  • Week and year of production
  • Environmental conditions during operation
  • Protection class
  • Hardware revision
  • Name and address of the manufacturer
  • Logo for the EU WEEE Directive
  • CE marking

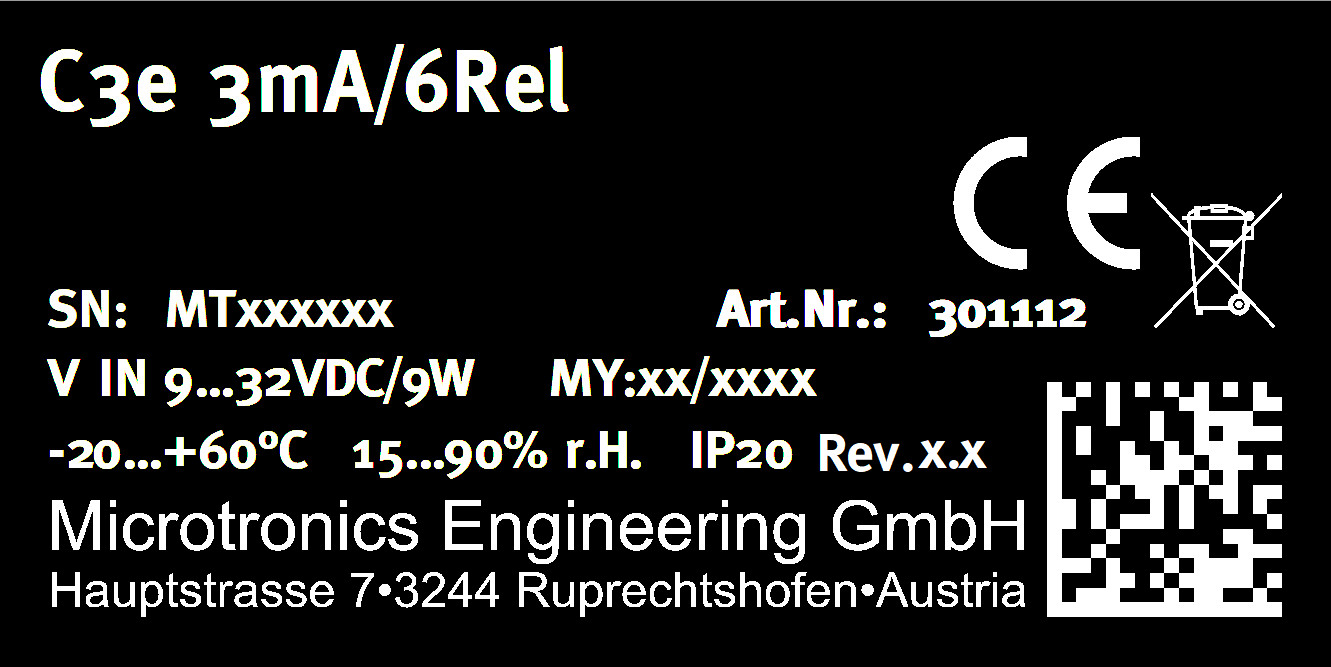

Type plate myDatalogC3e 3mA/6Rel



The correct specification of the type designation and serial number is important for all queries and spare part orders. Only then can we process requests promptly and properly.

Note: These operating instructions are part of the device and must be available to the user at all times. The safety instructions contained therein must be observed.

Attention: It is strictly prohibited to disable the safety equipment or modify its mode of operation.
