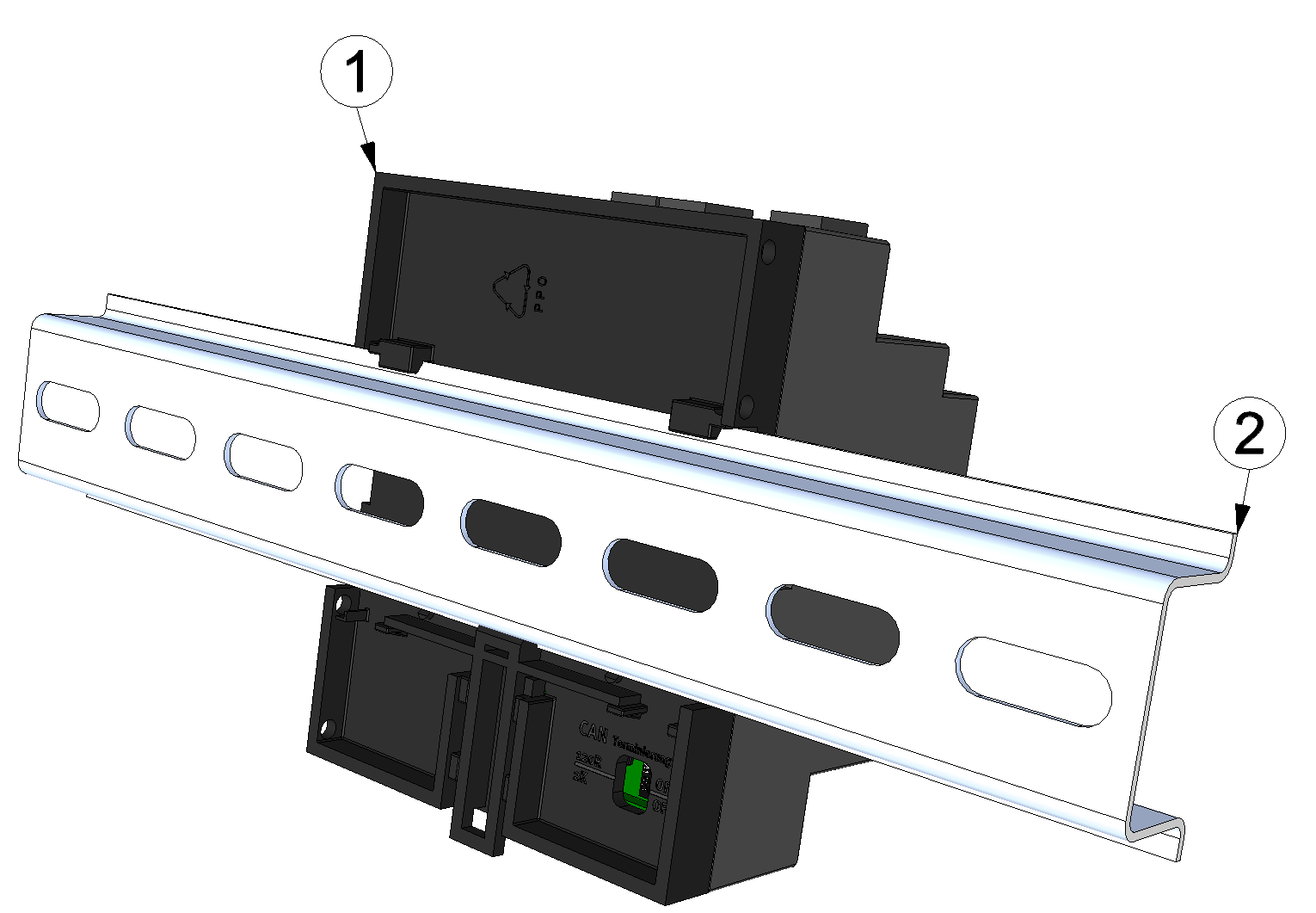

Top hat rail assembly
The installation on the top hat rail is carried out in the same way for all components of the myDataconC3+ (data logger, input extension and output extension) and is described in the following.
| 1 | Components of the myDataconC3+ (e.g. myDatalogC3xx) | 2 | Top hat rail |
- Place the component on to the top edge of the top-hat rail. Turn slightly around the horizontal axis so that the component clicks into the top-hat rail (see figure Top hat rail assembly).
