Wall mounting
The optional "Wall mounting set (400443)" equipment is required for wall mounting.
| 1 | Lizzox Pure Flood | 4 | 8.4 lining disc (included in the scope of delivery of 400443) |
| 2 | Assembly loop (included in the scope of delivery of 400443) | 5 | 8x80 SW 13 hexagon bolt (included in the scope of delivery of 400443) |
| 3 | M6x12 imbus HX4 rounded head screw (included in the scope of delivery of 400443) |

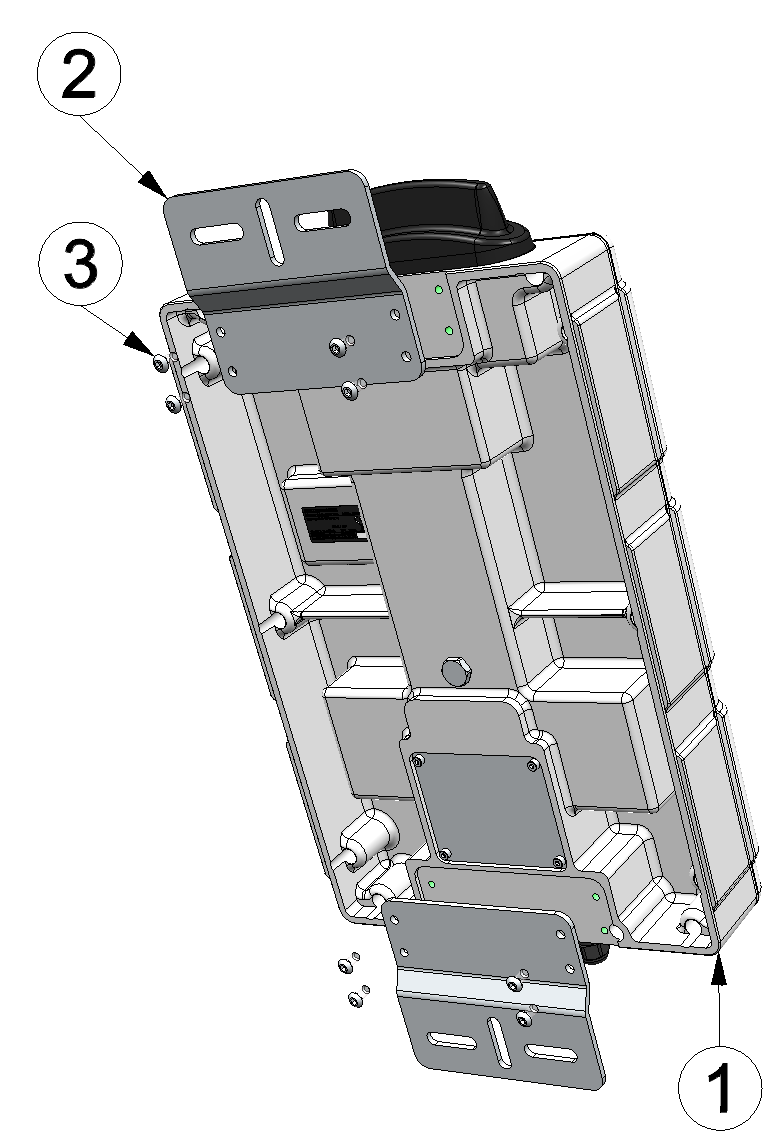

- First attach the assembly loop (2) using the rounded head screws (3) included in the "Wall mounting set (400443)" equipment set to the Lizzox Pure Flood (see Wall mounting - step 1).
- Drill the holes for assembly:

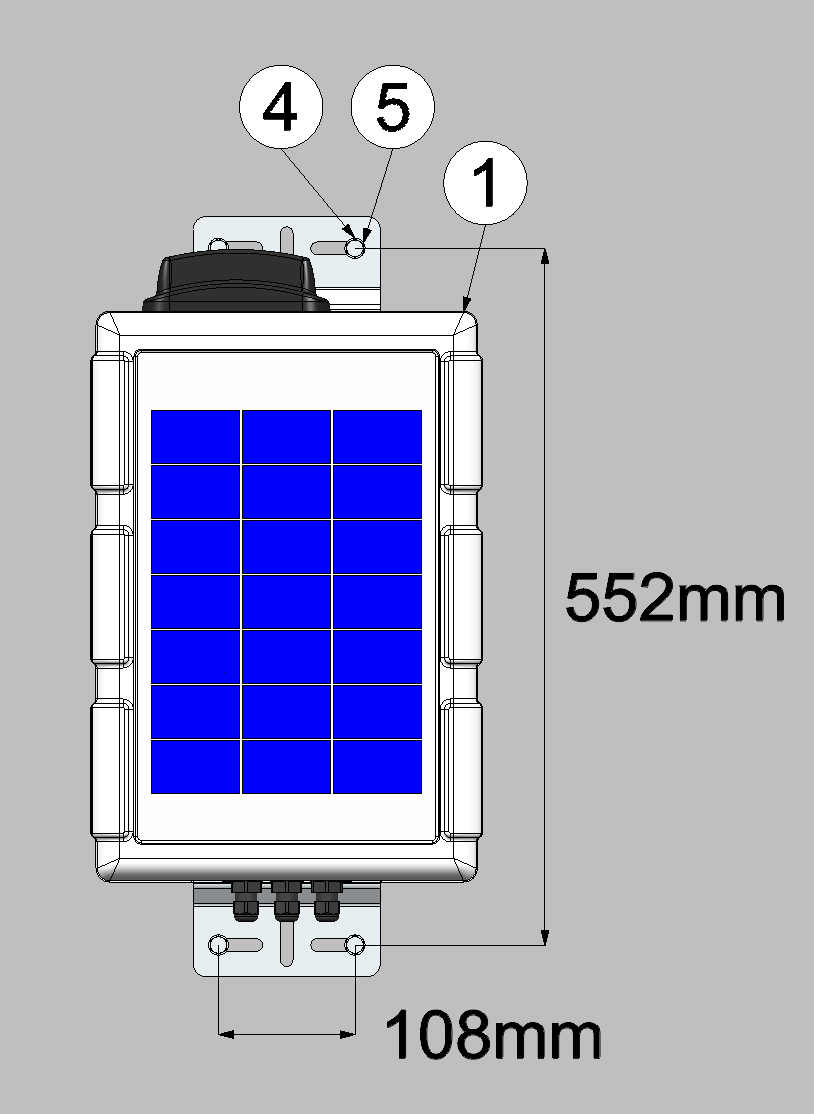

If you want to use the hexagon bolts (5) included in the equipment set to secure the assembly loop (2) to the wall, drill four holes with a diameter of 12 mm wide and min. 80 mm depth in the wall in accordance with the dimensions in the diagram Wall mounting - step 2.If you want to use your own fastening screws, use the slotted holes in the assembly loop (2) to determine the position of the holes. The diameters are then determined by the screws that are being used and any wall plugs that may be required.
- Secure the Lizzox Pure Flood
at the wall:
If you want to use the hexagon bolts (5) included in the equipment set, first of all insert the supplied wall plugs into each of the four drill holes before screwing the Lizzox Pure Flood with the attached assembly loop (2) to the wall (see Wall mounting - step 2).If you are using your own screws, you must also insert the wall plugs into the holes before mounting the Lizzox Pure Flood with the attached assembly loop (2) to the wall (see Wall mounting - step 2).
