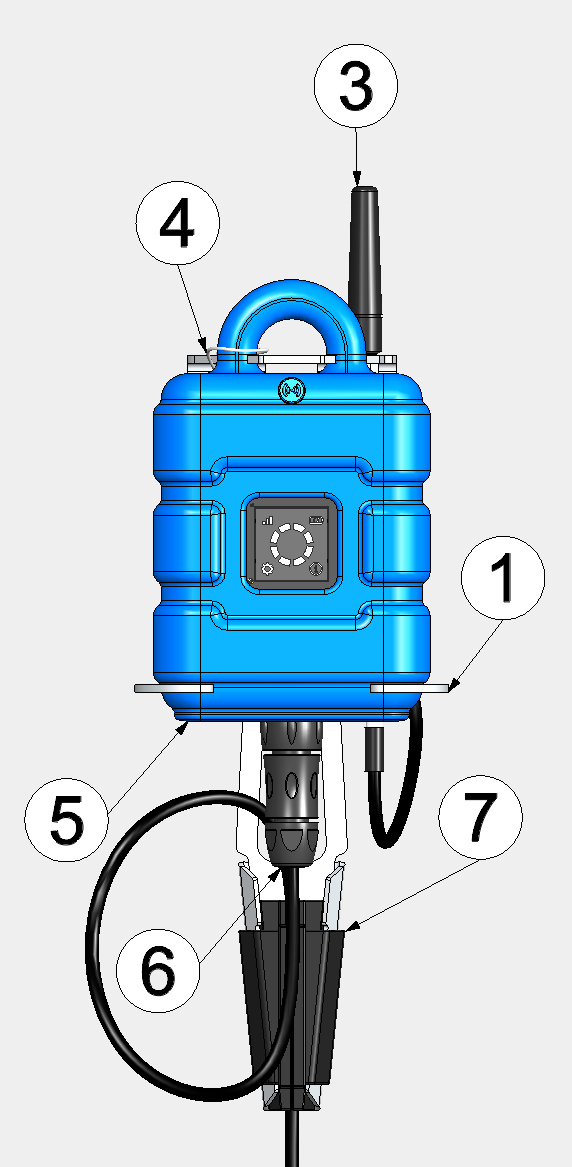

Wall mounting with mounted protection casing

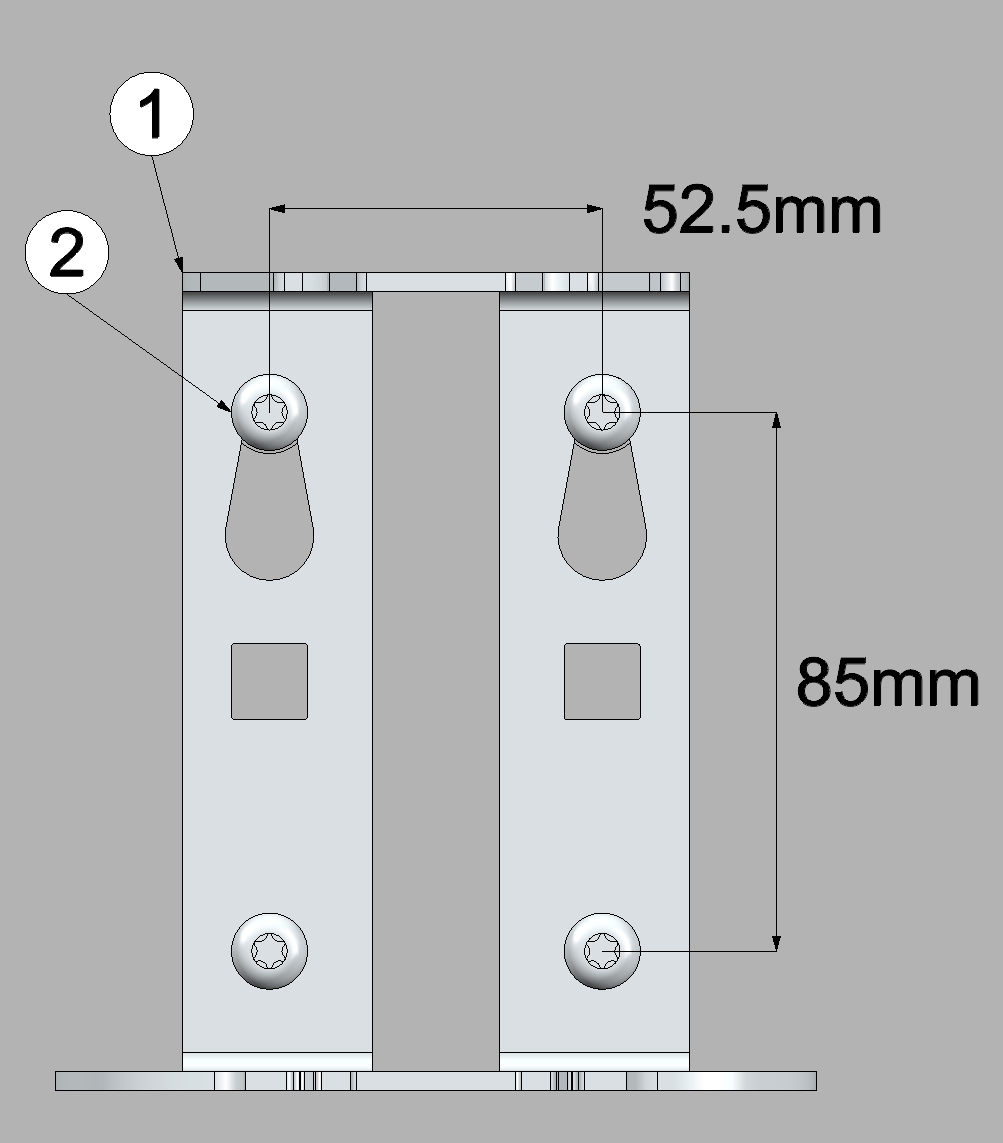

1. Drill the four holes with a diameter of 10 mm and a minimum depth of 60 mm in accordance with the dimensions specified in figure Wall mounting step 1 for the wall plugs (10x50) that are included in the scope of supply of the mounting kit.
2. Insert a wall plug (included in the scope of supply) into each of the four drilled holes before you screw the mounting bracket (1) to the wall.
3. Mount the protection casing (see Installing the protection casing)

   How-To-Video: Installing the protection casing

The following step is only required for Jellox Pulse with ext. antenna connector (Type key D022‑4Z001200D05).
4. Connect the Multi band rod antenna with connection cable 250 mm to the antenna connector of the Jellox Pulse .
   Tip: Depending on the installation situation, it may be more practical to connect the Multi band rod antenna with connection cable 250 mm after inserting the Jellox Pulse into the mounting bracket.

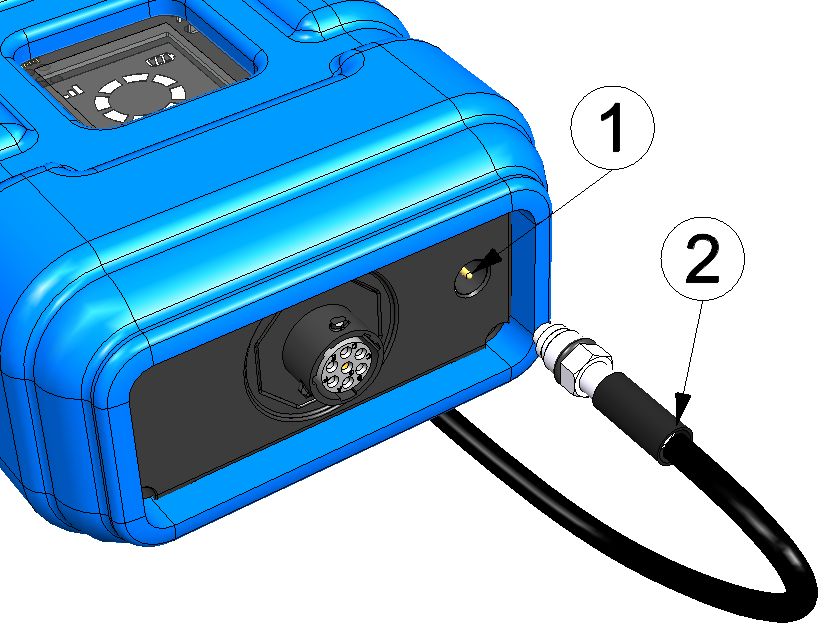

   Connecting the mobile network antenna

   1

   Antenna connector

   2

   Multi band rod antenna with connection cable 250 mm

5. Push the plastic clamping jaws of the grounding clamp upwards until the resulting gap is large enough to insert the connection cable. Insert the cable and secure it by pushing the plastic clamping jaws back down. On the end of the connector, the cable should protrude at least 40 cm from the plastic clamping jaws to enable convenient connection of theJellox Pulse later on.

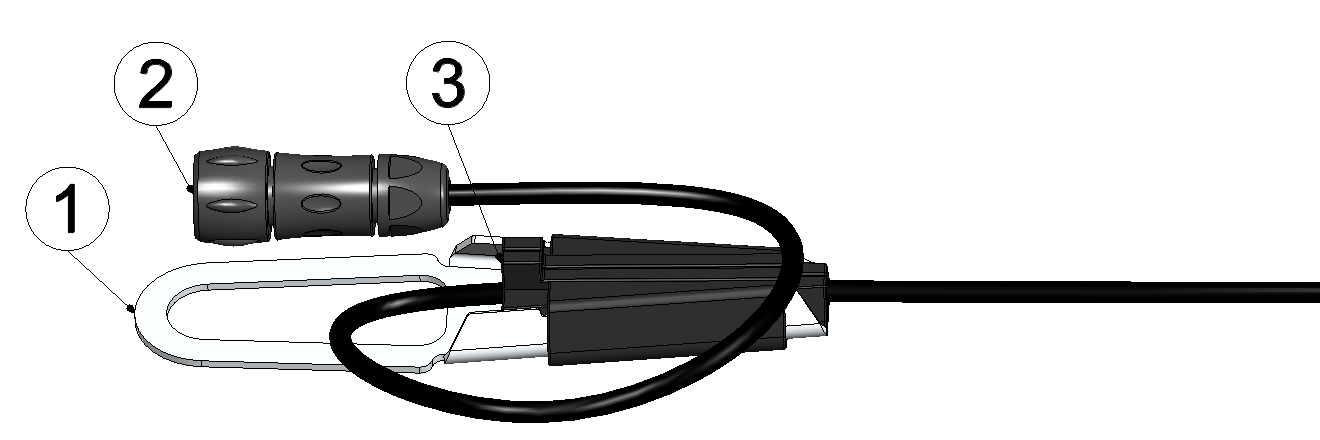

   Inserting the connection cable into the straining clamp

   1	Anchor clamp 5,5 - 10,5 mm	3	Plastic clamping jaws
   2	Connection cable 7pin 8 m

6. Attach the straining clamp to the designated holder on the mounting bracket.

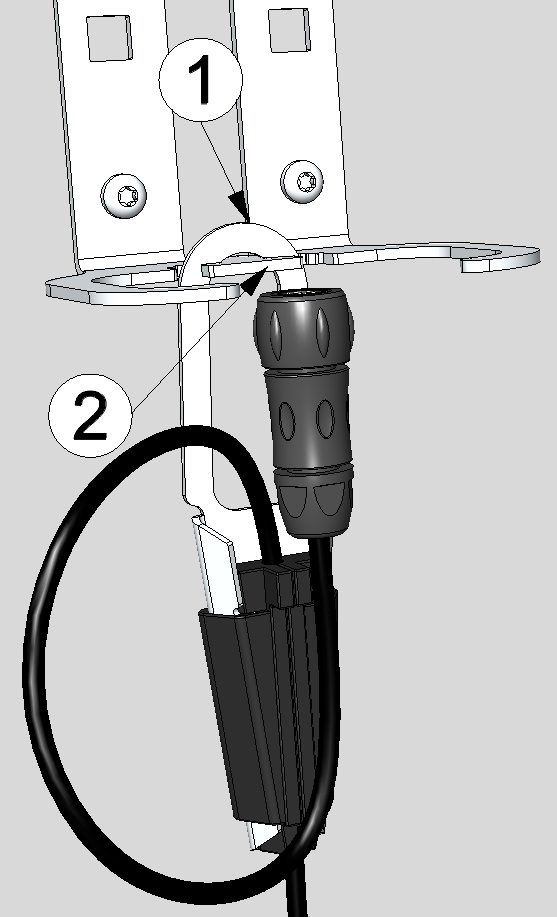

   Attaching the straining clamp

   1

   Anchor clamp 5,5 - 10,5 mm

   2

   Fitting for the straining clamp

7. Insert the Jellox Pulse into the mounting bracket bottom first. Tilt the Jellox Pulse forward (i.e. away from the wall) to position the top of the Jellox Pulse underneath the upper brace of the mounting bracket.

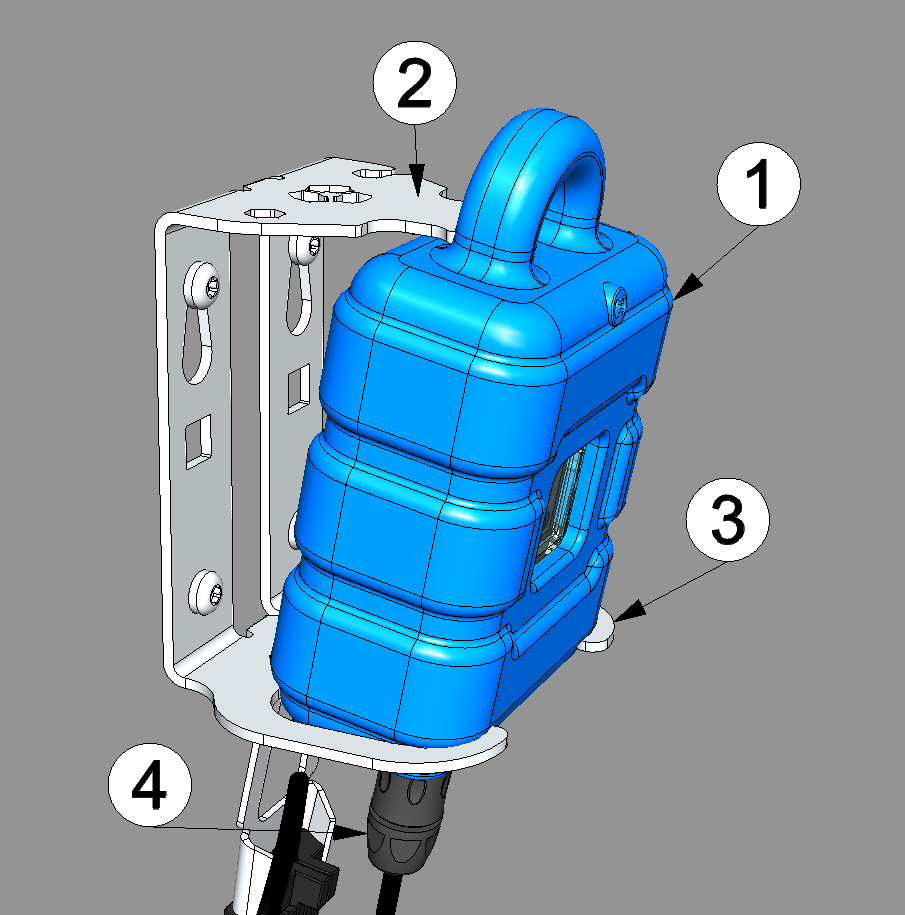

   Inserting the Jellox Pulse

   1	Jellox Pulse	3	Mounting bracket
   2	Upper brace of the mounting bracket	4	Connection cable 7pin 8 m

8. Press the top of the Jellox Pulse towards the wall until the lug of the protective armour is fully engaged in the upper brace of the mounting bracket.
   Note: If the connection cable becomes taut when inserting the Jellox Pulse into the mounting bracket, briefly loosen the plastic clamping jaws of the anchor clamp to correct this problem. Ensure that the bending radius of the cable loop above the strain relief clamp is no less than 2,04 cm .

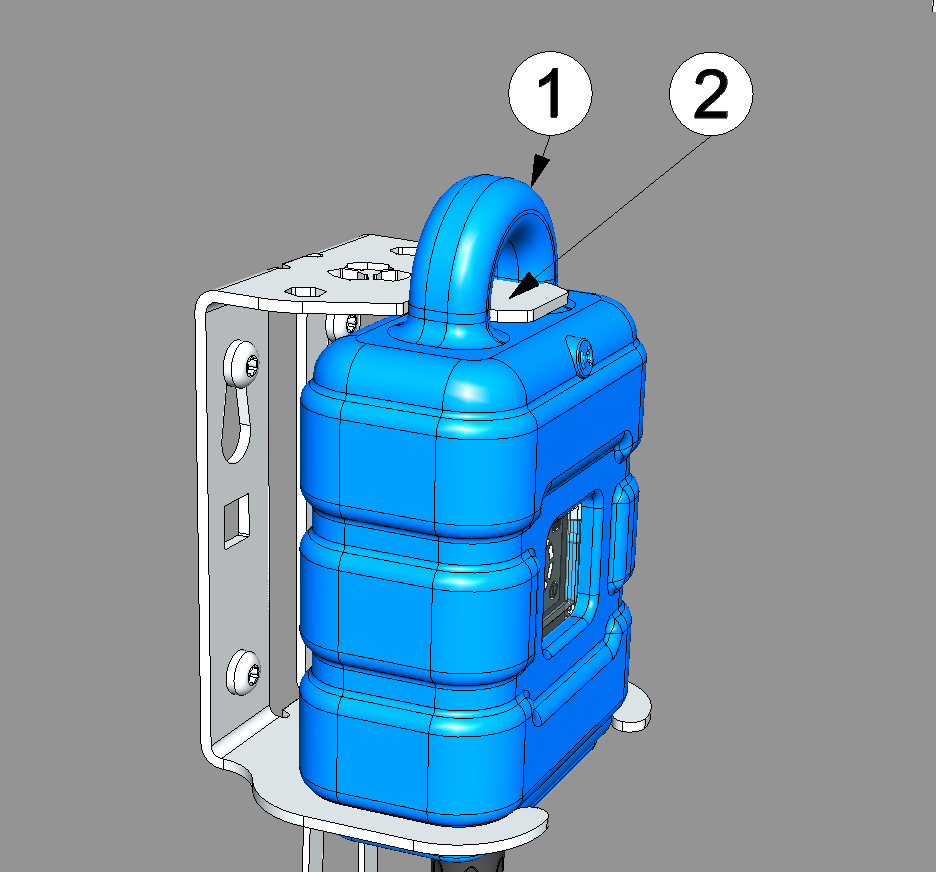

   Locking the Jellox Pulse in place

   1

   Lug of the protective armour

   2

   Upper brace of the mounting bracket

The following step is only required for Jellox Pulse with ext. antenna connector (type key D022‑4Z001200D05)
9. Insert the Multi band rod antenna with connection cable 250 mm into the designated slot in the upper brace of the mounting bracket.

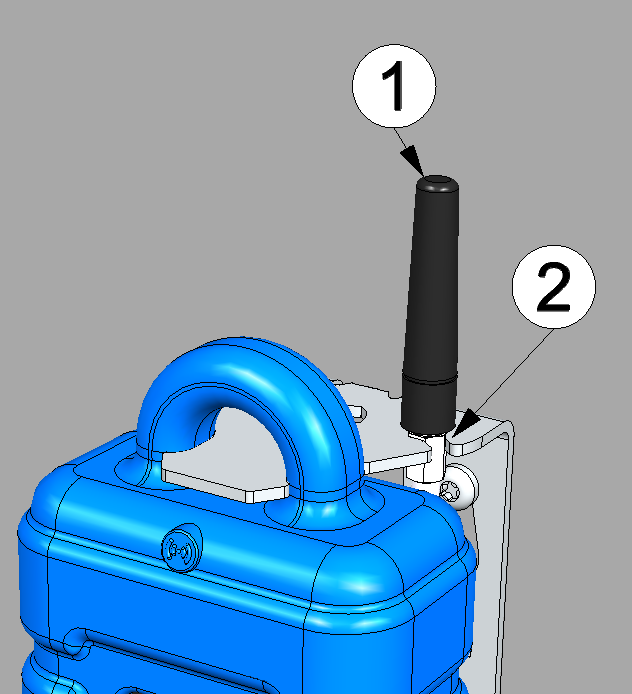

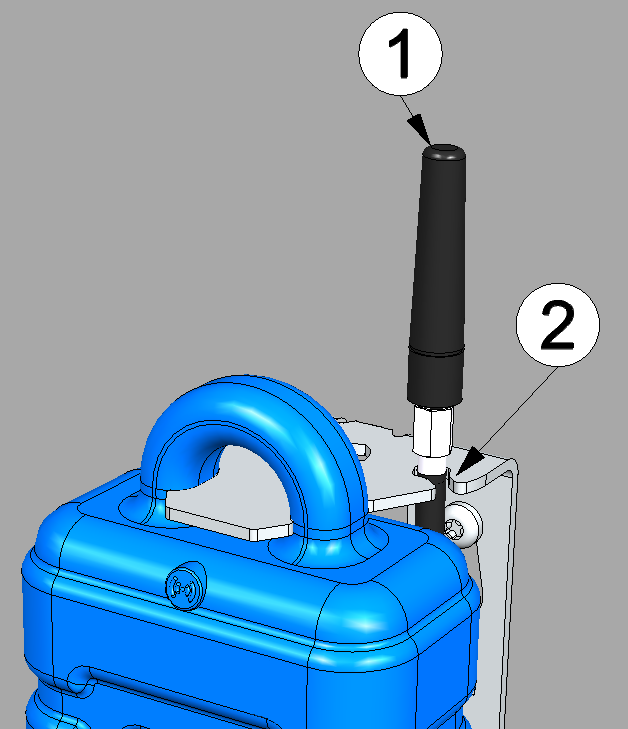

   Inserting antanna step 1

   Inserting antenna step 2

   1

   Multi band rod antenna with connection cable 250 mm

   2

   Antenna slot

The following step is only required if you want to add an anti-tamper seal.
10. Pass the sealing wire through the opening in the upper brace of the mounting bracket and through the retaining lug of the protective armour. Form a closed loop and insert both ends of the sealing wire through the seal. Ensure that the sealing wire is tight but not under tension. Secure the seal by pressing it together with sealing pliers. If necessary, document the process in accordance with internal company guidelines.



    Caution: Cut the wire ends cleanly to prevent injury.

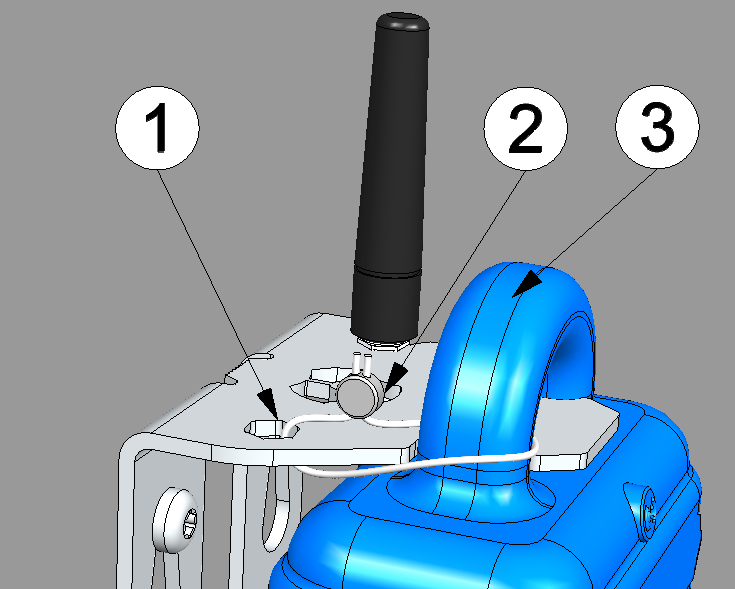

    Installing the security seal

    1	Opening for security seal or anti-theft device	3	Lug of the protective armour
    2	Security seal
