Wall mounting
For wall mounting, the optional accessory "Wall bracket (301435)" is required.

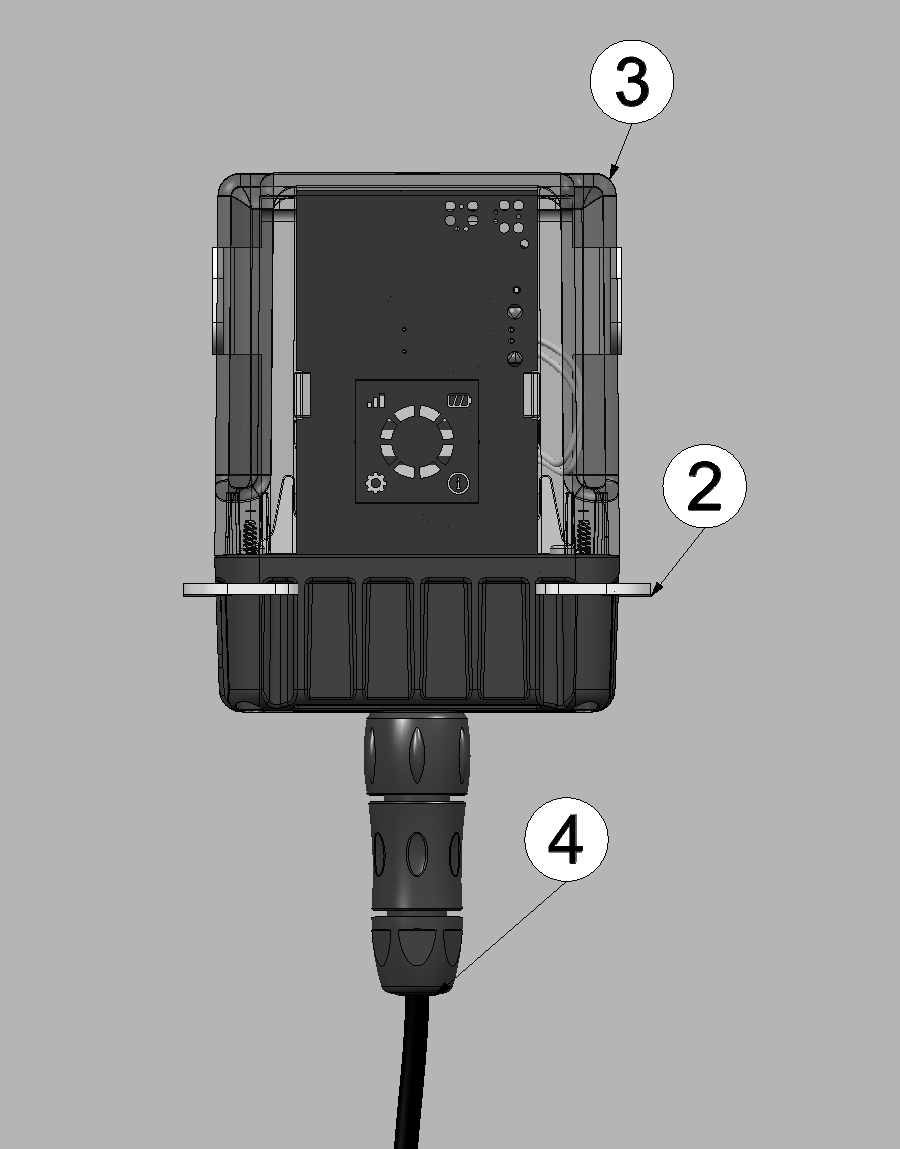

Wall mounting step 2 |
| 1 | Lens head screw with tapping screw thread ST3,5x32 Torx 15 (included in the scope of supply of 301435) | 3 | Jellox Pulse |
| 2 | Retaining bracket (included in the scope of supply of301435) | 4 | Connection cable |

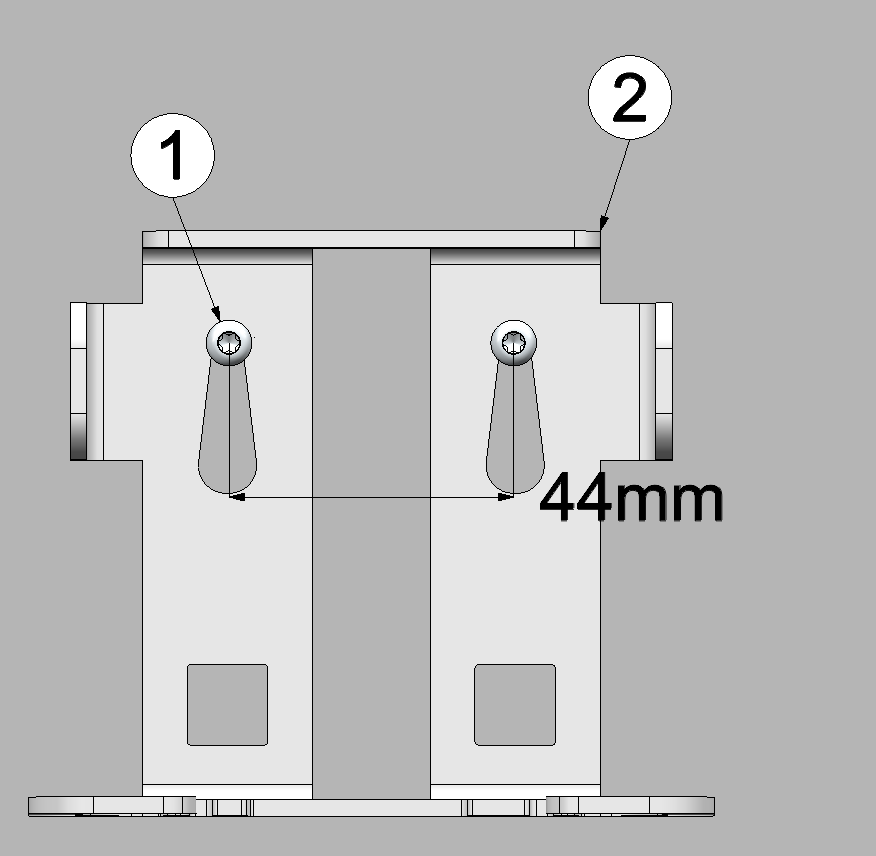

- Drill two holes with a diameter of 6 mm in accordance with the dimensions specified in figure Wall mounting step 1 for the plugs (6x30) included in the mounting kit.
- Insert a plug from the mounting kit in each of the holes drilled before screwing the retaining bracket (2) to the wall.
- Insert the Jellox Pulse
into the retaining bracket (2)
from above, bottom side first. It is recommended to connect the connection cable to the
sensor connector of the Jellox Pulse
first.

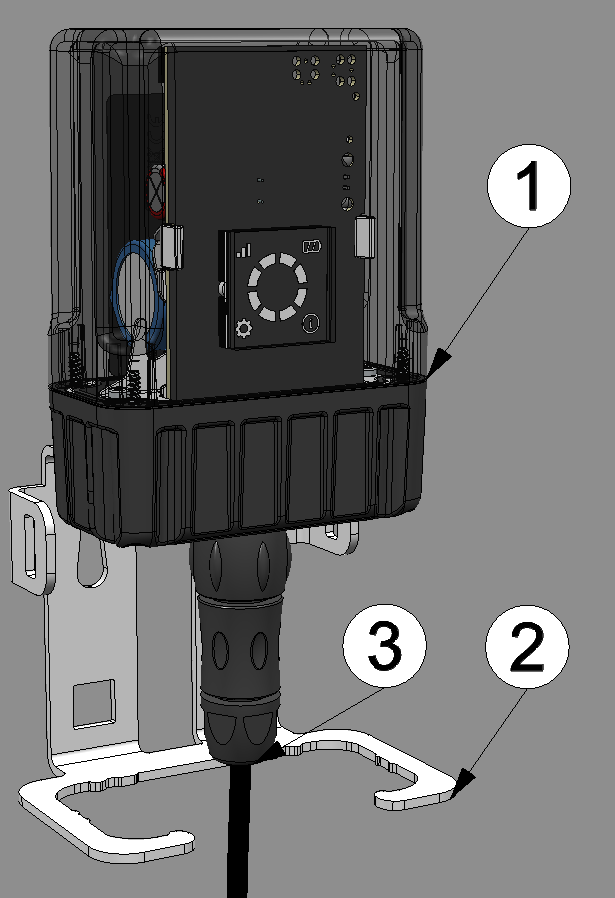

Inserting the Jellox Pulse
1 Jellox Pulse 3 Connection cable 2 Retaining bracket
