Pipe mounting

For the installation on a pipe the optional accessory "Pipe holder (301437)" is required.
How-To-Video: Pipe mounting

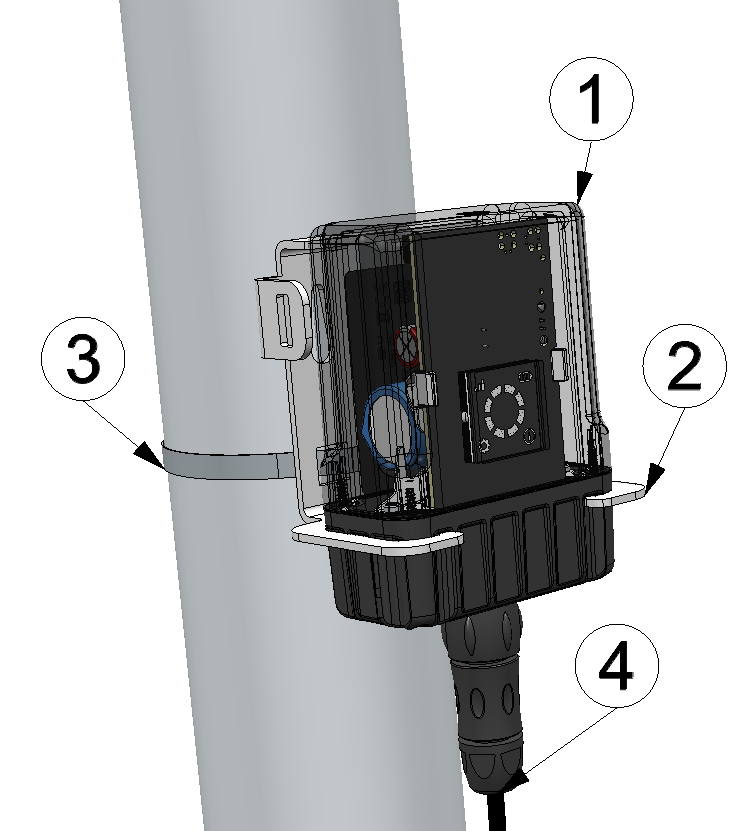

Pipe mounting

1 Jellox Pulse 3 Tightening strap (for pipe diameter 38-120 mm; included in the scope of supply of 301437)
2 Retaining bracket (included in the scope of supply of 301437) 4 Connection cable

  1. Thread the tightening strap through the corresponding opening in the retaining bracket (see Attaching the retaining bracket to the pipe). If you already know the diametre of the pipe to which the retaining bracket should be attached, you can cut the tightening strap to the required length using tin snips.
  2. Position the retaining bracket on the pipe and use the tightening strap provided to fasten the retaining bracket.

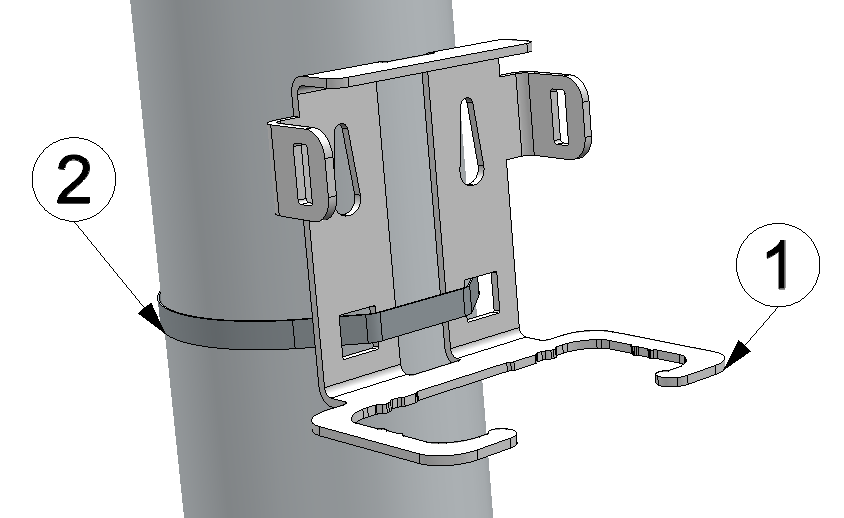

    Attaching the retaining bracket to the pipe

    1 Retaining bracket 2 Tightening strap
  3. Insert the Jellox Pulse into the retaining bracket from above, bottom side first. It is recommended to connect the connection cable to the sensor connector of the Jellox Pulse first.

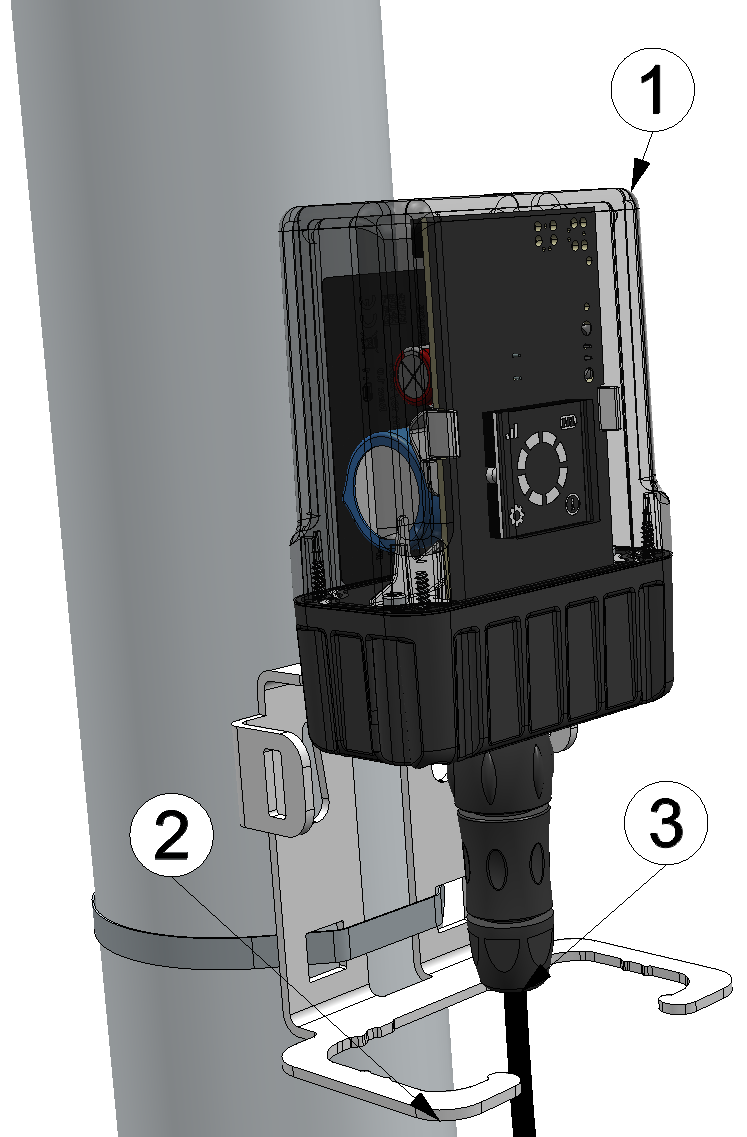

    Inserting the Jellox Pulse

    1 Jellox Pulse 3 Connection cable
    2 Retaining bracket
