Installation in an inspection chamber

The Jellox Pulse can be installed in round inspection chambers from a diameter of 95,5 mm and a depth of at least 240 mm .

The Protection casing (300662) , available as an optional accessory, provides the Jellox Pulse with additional protection against impact and mechanical stress and is recommended for installation in an inspection chamber. The Protection casing increases the diameter of the shaft required for installing the Jellox Pulse to 114 mm . The minimum depth is also increased to 280 mm .

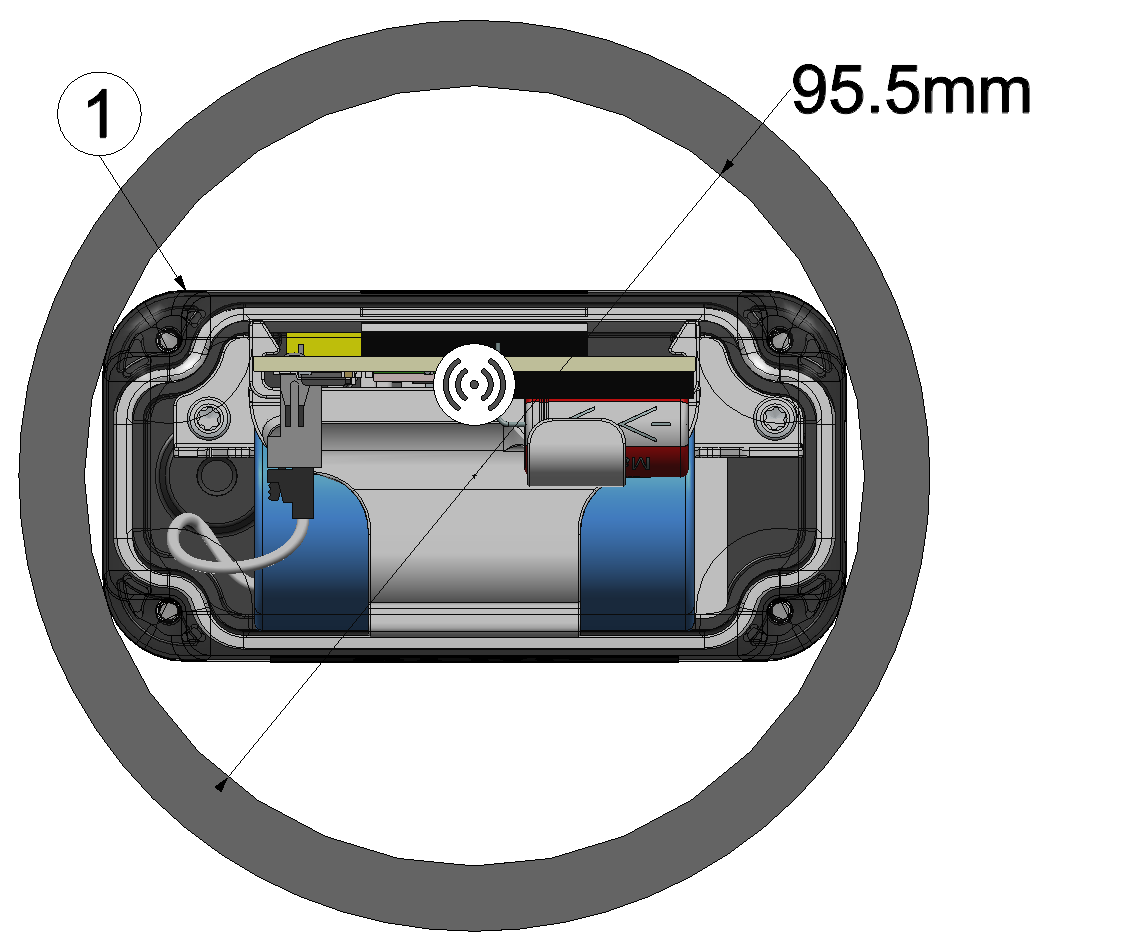

Jellox Pulse without protection casing in the chamber

(View from above)

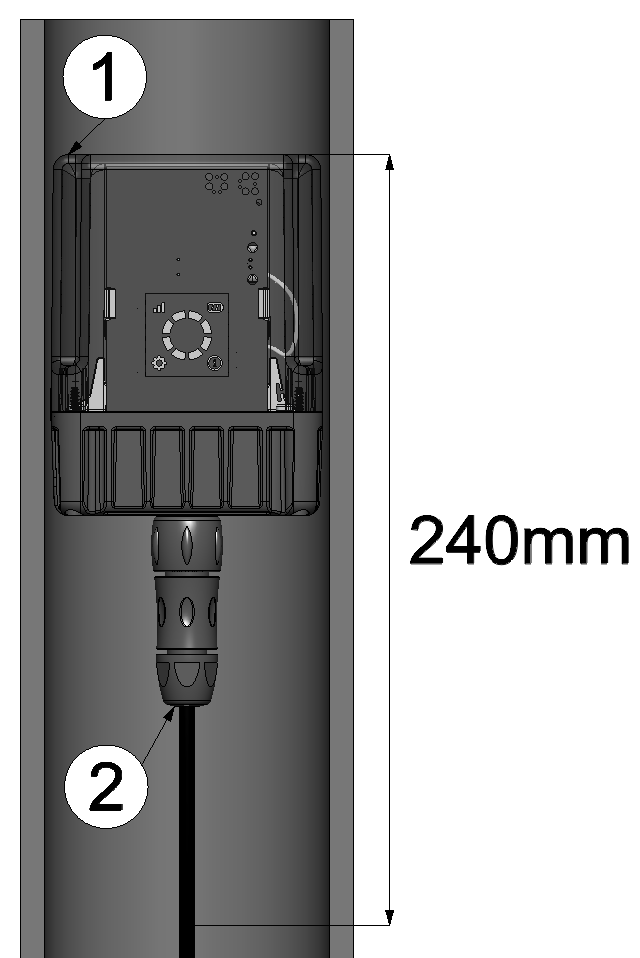

Jellox Pulse without protection casing in the chamber

(View from the side)
1 Jellox Pulse 2 Connection cable

The first step is only required, if you want to use the optional Protection casing .

  1. Install the protection casing (see Installing the protection casing)

    How-To-Video: Installing the protection casing

  2. Connect your meter with the connection cable (see Connecting the meters and the digital contacts).
    Important: Protect the connection point between the connection cable and the meter in a suitable manner against penetrating moisture and dust.
  3. Connect the connection cable to the sensor connection of the Jellox Pulse .
  4. Insert the Jellox Pulse completely into the shaft and secure it in a suitable manner.
    Important: The minimum bending radius of 5,1 cm must not be exceeded when laying the connection cable. This applies both to any required cable loops and to the point at which the connection cable exits the plug.
    Important: The Jellox Pulse must not rest directly on the ground with the plug of the connection cable.
