Suspended installation

The following optional accessory sets are required for suspended installations:

  • 2 x Niro shackle (206.330)
  • 1 x Anchor clamp 5,5 - 10,5 mm (301017)
  • 1 x Connection cable 7pin 8 m (301689)
  • 1 x Protection casing (300662)

Suspended installation

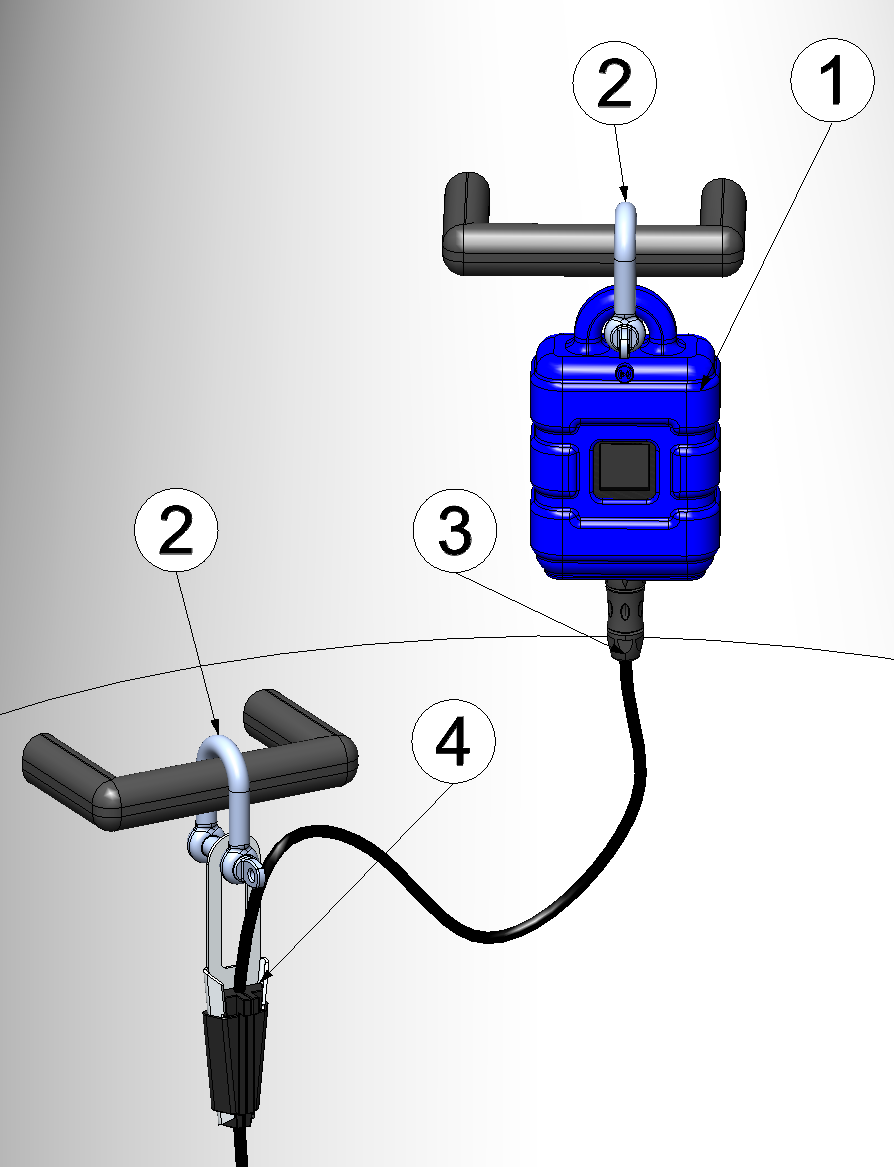

1 Jellox Pulse with installed Protection casing (300662) 3 Connection cable 7pin 8 m (301689)
2 Niro shackle (206.330) 4 Anchor clamp 5,5 - 10,5 mm (301017)
  1. Install the protection casing (see Installing the protection casing)

    How-To-Video: Installing the protection casing

  2. Use the Niro shackle (206.330) to attach the Jellox Pulse with installed Protection casing (300662) in accordance with the figure Suspended installation to a suitable attachment point.
  3. Use the Niro shackle (206.330) and the Anchor clamp 5,5 - 10,5 mm (301017) to attach the connection cable in accordance with the figure Suspended installation to a suitable attachment point.
    Important: The sensor connection of the Jellox Pulse is not designed to carry heavy loads. For this reason, a clamp must be used in order to fasten the sensor cable in a suitable manner.
  4. Connect the connection cable with the sensor connection of the Jellox Pulse .
