Device labelling

The specifications in this user manual apply exclusively to the Jellox Node device type. The type plate is located on the rear side of the device and contains the following specifications:

  • Product designation
  • Serial number
  • Item number
  • Type key
  • Ex marking as specified in chapter Declaration of conformity
  • Hazard note regarding electrostatic charge build-up
  • CE marking
  • Logo for the EU WEEE Directive
  • Environmental conditions during operation
  • Protection class1)
  • Week and year of production
  • Hardware revision
  • Name and address of the manufacturer

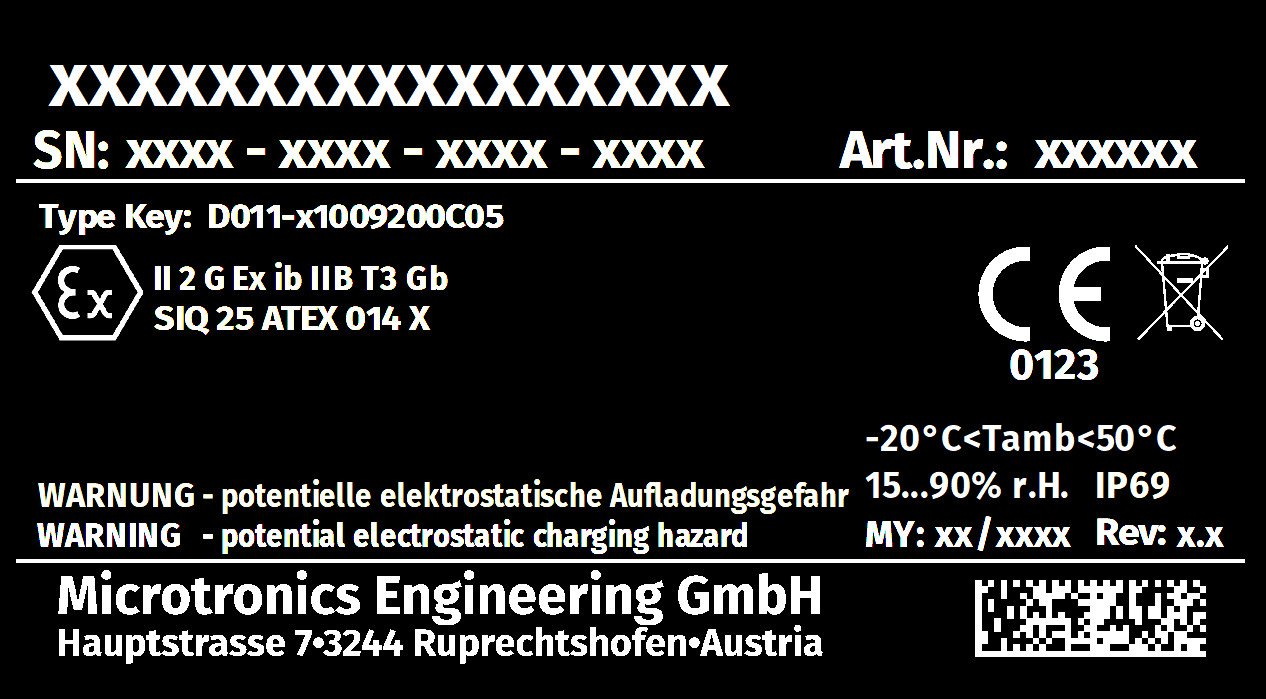

Type plate Jellox Node

1) Only the highest of the protection classes for which the device has been tested is indicated on the type plate. A list of all protection classes for which the device has been tested can be found in chapter Specifications.

The correct specification of the type designation and serial number is important for all queries and spare part orders. Only then can we process requests promptly and properly.

Note: These operating instructions are part of the device and must be available to the user at all times. The safety instructions contained therein must be observed.

Attention: It is strictly prohibited to disable the safety equipment or modify its mode of operation.
