Suspended installation
The optional "Niro shackle (206.330)" equipment is required for suspended installations.
|

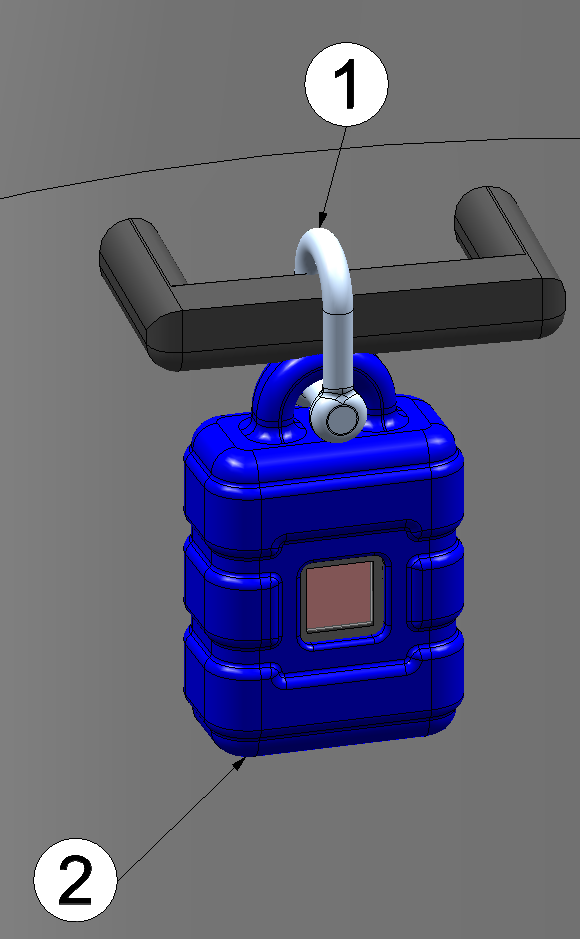

Suspended installation |
| 1 | Niro shackle (206.330) | 2 | Jellox Node |

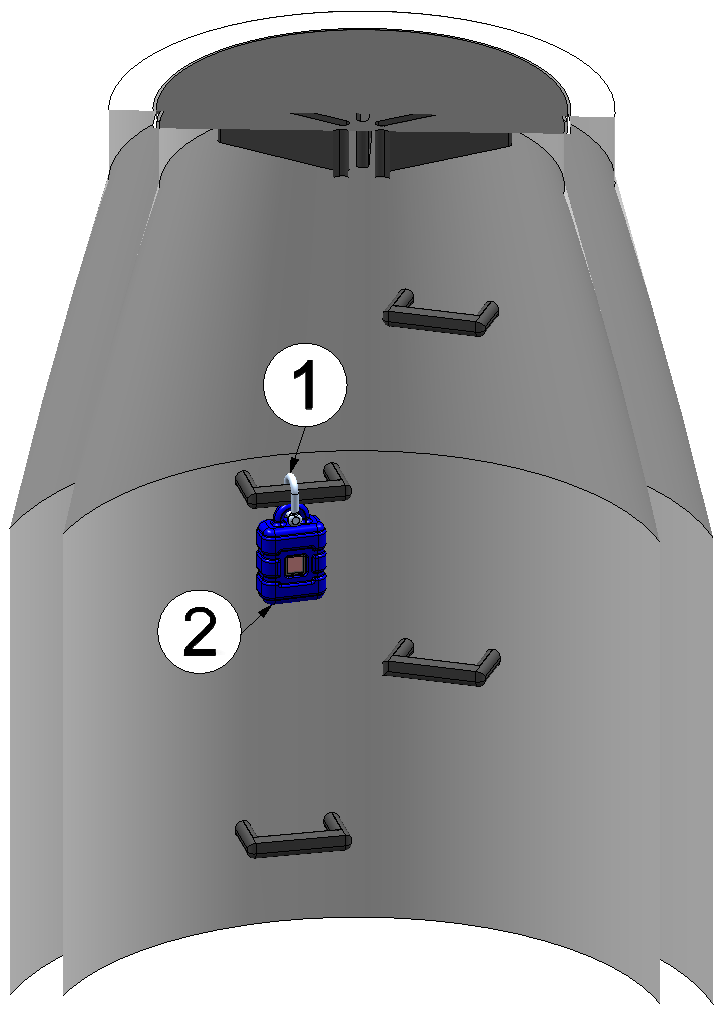

- Use the Niro shackle (206.330), to attach the Jellox Node to a rung of the channel ladder or a similar fastening point in accordance with the figure Detailed view of a suspended installation .
