Remote sensor module of type Gauge

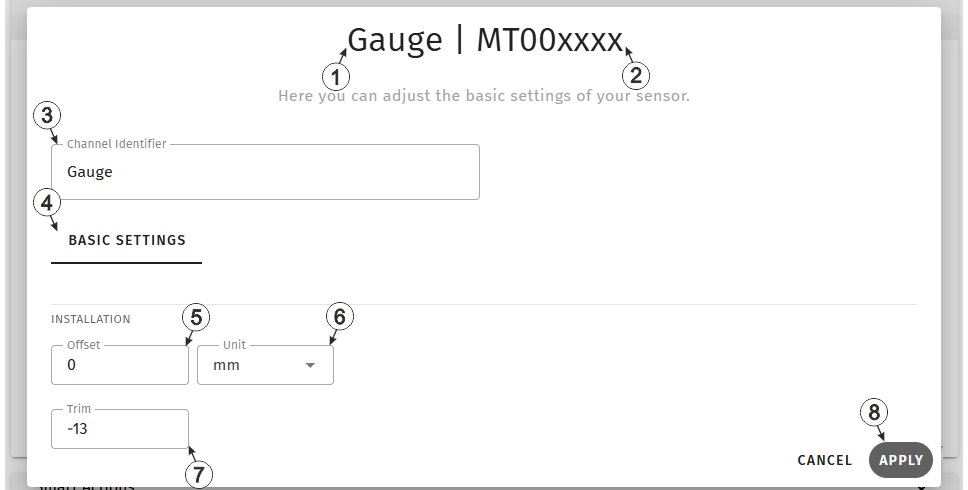

Input window "Remote sensor module of type Gauge"
| 1 | Type of the sensor
module used for determining the measurement value
Gauge (300893 + pressure probe)1): module for determining fill levels of fresh, dirty and gray water using a piezoresistive pressure sensor. |
|
| 2 | Serial number of the sensor module used for determining the measurement value | |
| 3 | Freely selectable, variable part of the designation for the measurement values
recorded via the sensor module assigned to the measuring channel
Several measurement values are recorded for each of the remote measurement channels. Their name is made up of the variable part and a fixed part which depends on the type of sensor module it is assigned to (e.g. "myName - Level", "myName - Distance", etc. for sensor modules of the type "Radar"). |
|
| 4 | Buttons for switching between the individual tabs of the input window | |
| 5 | specifies the sensor offset.
Tip: Additional explanations on calculating the water level taking the
offset into account can be found in the user manual of the sensor module.
|
|
| 6 | Selection of the length unit (mm, cm or m) used by all of the server display elements | |
| 7 | Is
used to adjust the zero point
Tip: Additional explanations on the zero point adjustment (i.e. taking
triming into account) can be found in the user manual of the sensor module.
|
|
| 8 | Button to apply the settings
Note: To save the settings, the "Save" button below the "Smart Actions" configuration
section must also be clicked.
|
|
1) The required pressure probe must be specified when ordering the Gauge .
