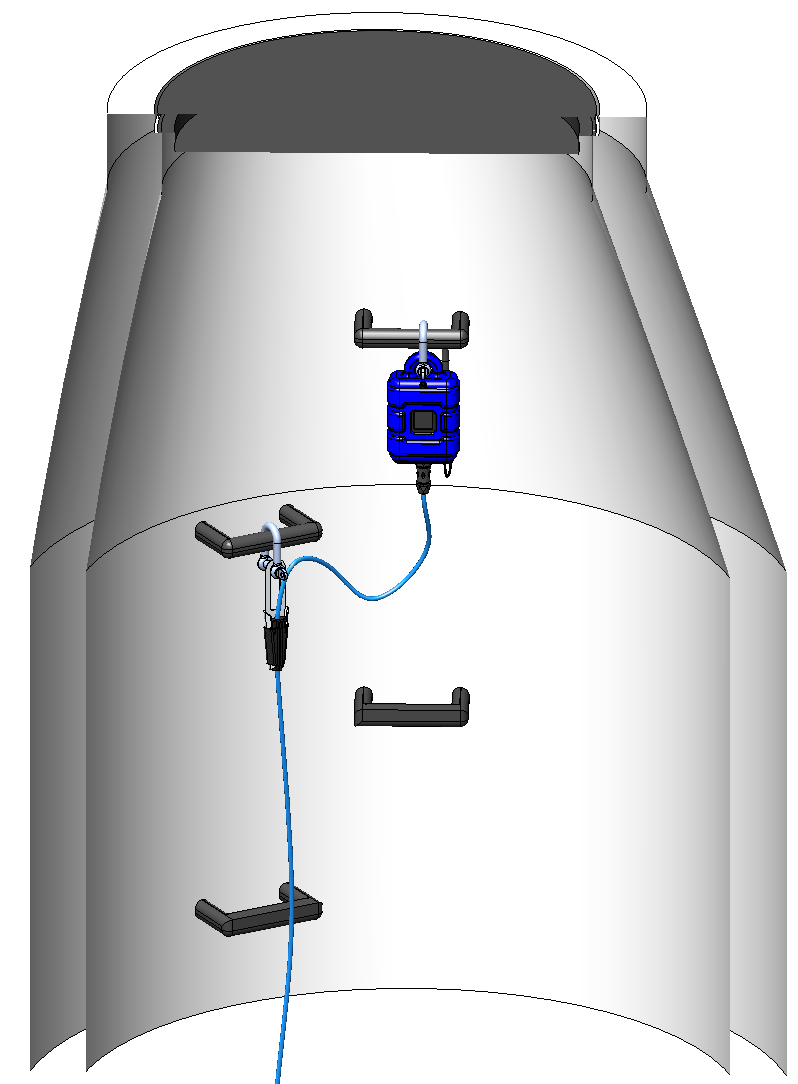

Suspended installation
The following optional accessory sets are required for suspended installations.
- 2 x Niro shackle (206.330)
- 1 x Anchor clamp 5,5 - 10,5 mm (301017)
- 1 x Multi band antenna with bracket (300787)
|

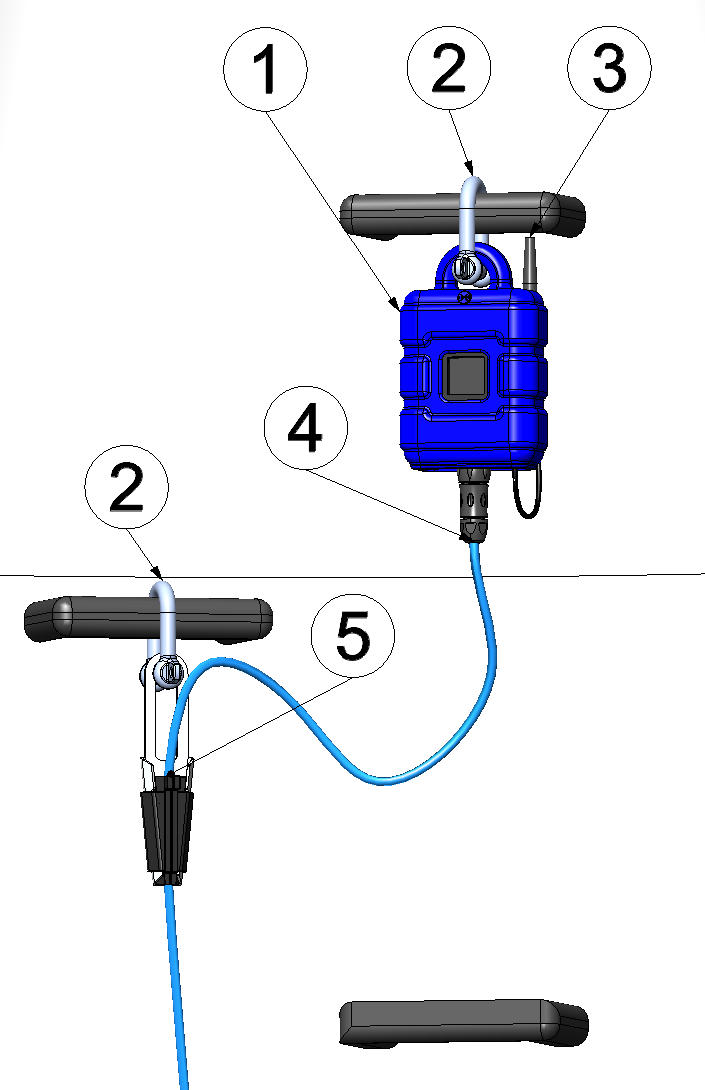

Suspended installation |
| 1 | Jellox Analog | 4 | Connection cable of the sensor (e.g. Connection cable 7-pins for sensors 2,8 m 206.602) |
| 2 | Niro shackle (206.330) | 5 | Anchor clamp 5,5 - 10,5 mm (301017) |
| 3 | Multi band antenna with bracket (300787) |
- Attach the Multi band antenna with bracket (300787) on the rear side of the Jellox Analog .
- Use the Niro shackle (206.330), to attach the Jellox Analog to a rung of the manhole ladder or a similar fastening point in accordance with the figure Detailed view of a suspended installation.
- Use the Niro shackle
(206.330) and the Anchor clamp 5,5
- 10,5 mm (301017) to attach the connection
cable of the sensor to a rung of the manhole ladder or a similar fastening point in
accordance with the figure Detailed view of a suspended installation .
Important: The sensor connection of the Jellox Analog is not designed to carry heavy loads. For this reason, a clamp must be used in order to fasten the sensor cable in a suitable manner.
- Connect the sensor cable with the sensor connection of the Jellox Analog .
Important: If you use a clamping tube to connect the Connection cable 7-pins for sensors 2,8 m (206.602) with the actual sensor cable, the clamping tube must be located between the Anchor clamp 5,5 - 10,5 mm (301017) and the sensor connection of the Jellox Analog (see Use of the clamping tubes).
