Connecting the sensor
- Ensure installation is completed correctly.
- Comply with existing legal and/or operational directives.
- Improper handling can cause injuries and/or damage to the instruments.
- Run all data cables so that they do not pose a trip hazard and ensure that cables do not have any sharp bends.
- Data cables must not exceed a lenght of 30 m.
- If no cable is connected to the sensor connector, the plug must be covered with the protective cap (type "UTS10DCG") included in the scope of delivery. If soiled, the protective cap must be cleaned before attaching it.
|
Connecting the sensors |

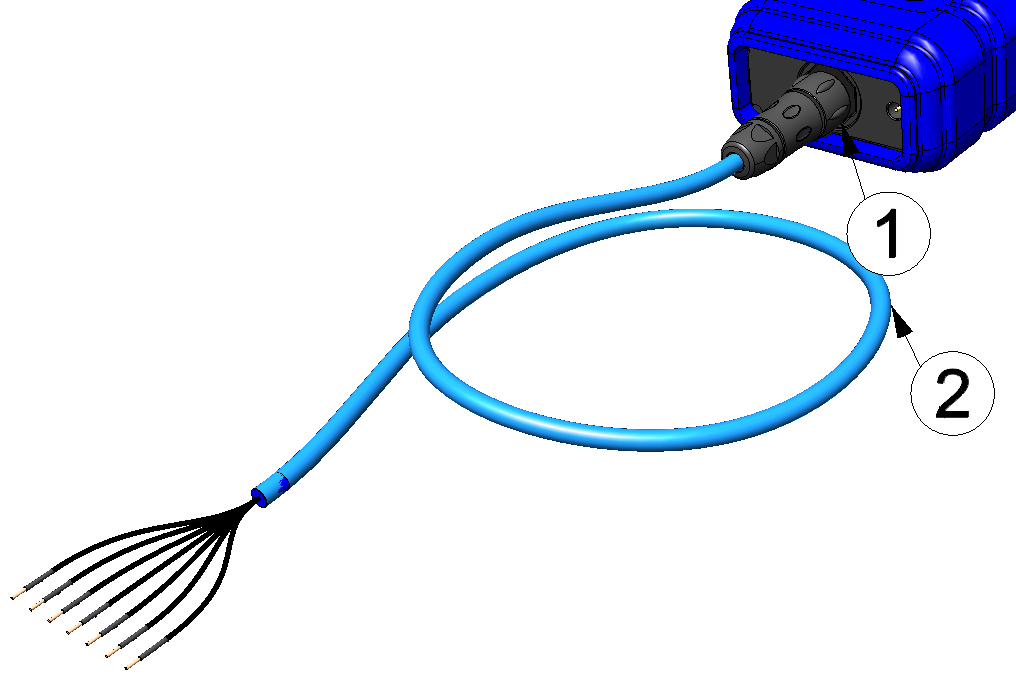

Connecting the sensors when using the Connection cable 7-pins for sensors 2,8 m (206.602) |
| 1 | Sensor connector (7-pin MIL connector) | 2 | Connection cable 7-pins for sensors 2,8 m (206.602) |
| Sensor connector (7‑pin MIL connector) | Connection cable 7-pins for sensors 2,8 m (206.602) | Signal | |
|---|---|---|---|
|
Sensor connector
Connection cable 7-pins for sensors 2,8 m |
A | 5 | NC |
| B | 4 | NC | |
| C | 3 | switchable and adjustable sensor supply (0...22 V ) | |
| D | 2 | NC | |
| E | 7 | Universal input 1 | |
| F | 6 | NC | |
| G | 1 | Ground |
- Activate the mode suitable for the output signal of the sensor in the input window "Universal input" (see Universal input).
- Connect your sensors to the sensor connector. You can use the Connection cable 7-pins for
sensors 2,8 m (206.602) or Cable connector 7-pins
(206.654). Further
accessories are detailed in the chapter Spare parts and accessories.
Important: If you operate the Jellox Analog in areas with a zone 1 explosive atmosphere, observe the ATEX requirements when connecting the open ends of the Connection cable 7-pins for sensors 2,8 m (206.602) with your sensors (e.g. distances between the signal lines). The same applies if you use the Cable connector 7-pins (206.654).Important: If you use the Connection cable 7-pins for sensors 2,8 m (206.602), the joint between the sensor cable and sensor must be suitably protected against the penetration of moisture and dust. You can use the Clamping tube(300256) or Pressure compensation tube (300131) for this purpose (see Use of the clamping tubes).
- Connect the antenna (see Connecting the mobile network antenna ).
- Activate setup mode using the reed switch (see Setup mode). Afterwards, the symbol for
connecting should be displayed on the device display.
Tip: If the Jellox Analog is still in transport mode, the transport lock is deactivated by activating setup mode and the device resumes operation according to the configuration settings.
- Check whether the connection to the myDatanet has worked correctly (see Testing communication with the device).
