Technical details about the universal input
Tip: The universal input is not galvanically isolated.
Important: If the Jellox Analog is operated in areas
with a zone 1 explosive atmosphere, it is not permitted to connect external voltages to the
universal input. This means that an analogue sensor must be supplied by the 0...22 V
voltage output of the device.
The Jellox Analog is equipped with a 16 bit ADC.

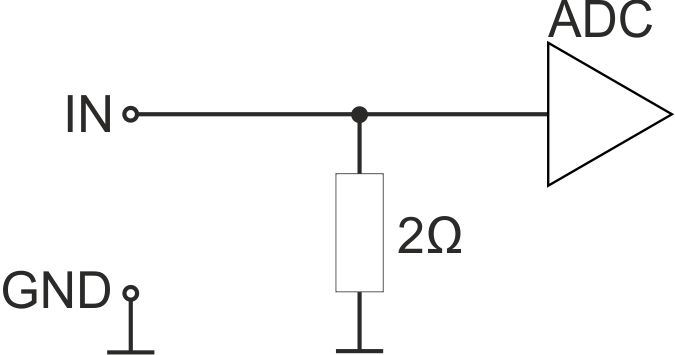

Schematic diagram of an universal input
