Ex protection

The battery-operated, stationary BLE Gauge  ist für den Einsatz in Bereichen mit explosiver Atmosphäre der Zone 1 ausgelegt.

The following conditions must be observed:

• The device is designed for fixed installation and cannot be used as a portable equipment in potentially explosive atmospheres.
• Equipment must be installed in a place with low risk of mechanical impact and shall be adequately protected from falling objects.
• Only the manufacturer is permitted to open the housing to carry out maintenance work, which must only be completed outside the Ex area.
• The battery must only be replaced by the manufacturer with certified identical products.
• Only the manufacturer is permitted to replace the pressure sensor.
• Only the manufacturer's original spare parts must be used.
• Possible risk of electrostatic charge - use a damp or electrostatically dissipating cloth to clean the device.
• A mounting distance of min. 50 mm must be maintained on all sides to prevent any impurities.
• Metal enclosure of the digital pressure sensor "KELLER AG for pressure measurement technology, type: 26DEi", shall be connected to earthing system.
• Metal holders for radio transceivers and cables shall be earthed in the course of installation.
• The device has to be protected from UV radiation.

II 2G Ex ib IIB T4 Gb

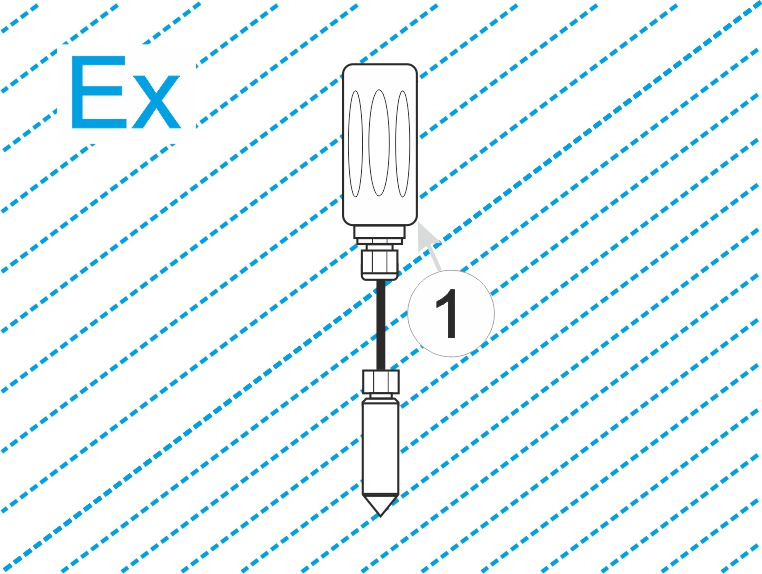

1

BLE Gauge
