Earthing of the BLE Gauge when installed suspended
Important: The following standards must be observed:
- EN60079-0 (Chapter 15: Connection parts for earthing or equipotential bonding conductors)
- EN60079-11 (Chapter 6.5: Earth conductors, connections and terminals)

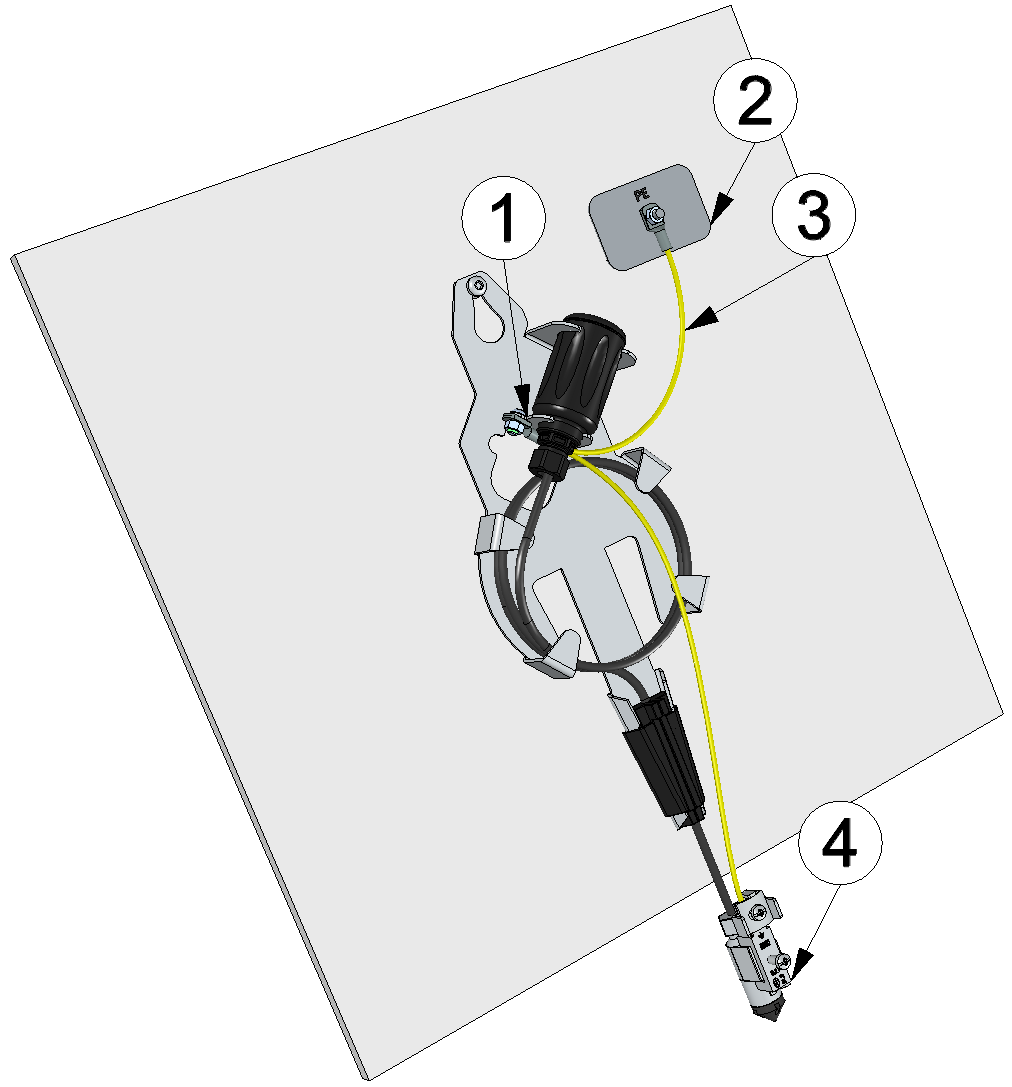

Earthing of the BLE Gauge when installed suspended
| 1 | Earthing point of the Mounting fixture | 3 | Earth cable (minimum requirement: 4 mm²) |
| 2 | Earth potential of the facility | 4 | Earthing pipe clamp |
