Wall mounting
For wall mounting the optional "Universal bracket for housing 86x126 (206.640)" equipment is required.
| 1 | 4-Channel Data Logger | 3 | Assembly loop (included in the delivery scope of 206.640) |
| 2 | Delta PT M3,5x8 Torx 15 (included in the delivery scope of 206.640) | 4 | Raised head tapping screw 3,5x32 (included in the delivery scope of 206.640) |

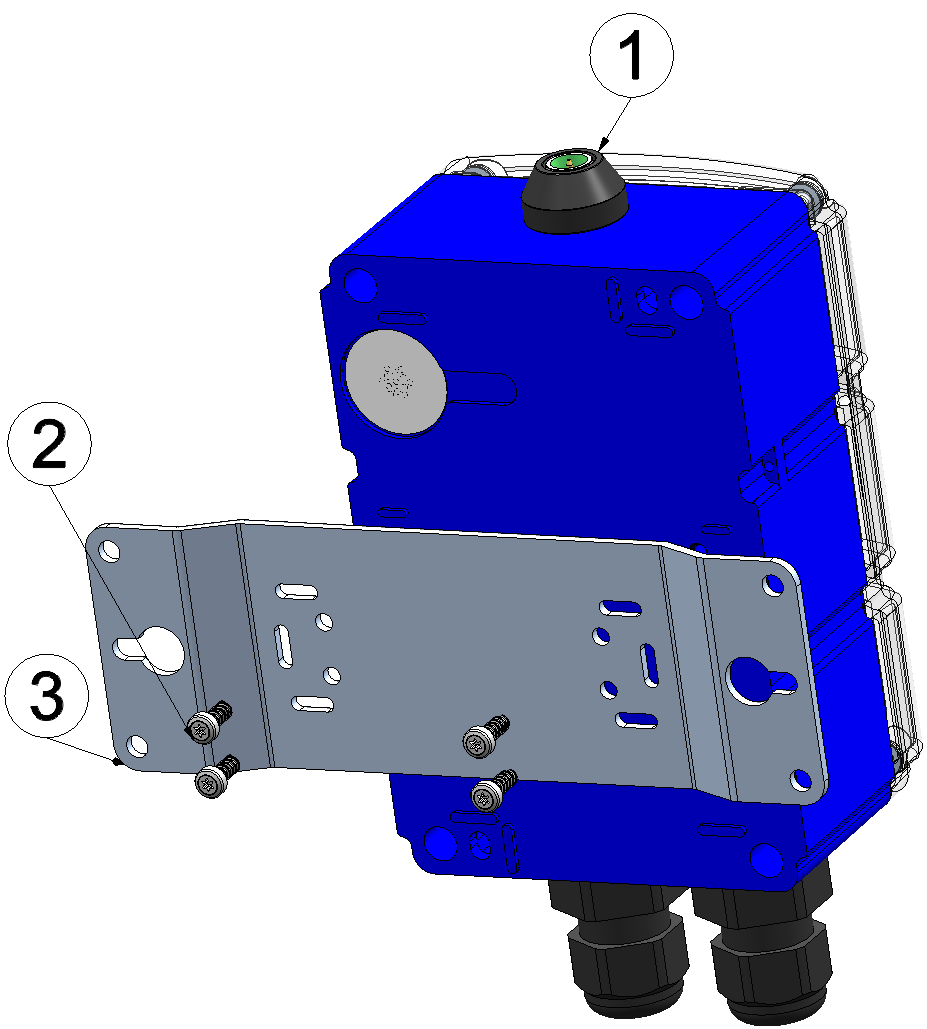

- First attach the assembly loop (3) using the screws (2) included in the "Universal bracket for housing 86x126 (206.640)" equipment set to the 4-Channel Data Logger (see Step 1 of the wall mounting).
- Drilling the holes for mounting:

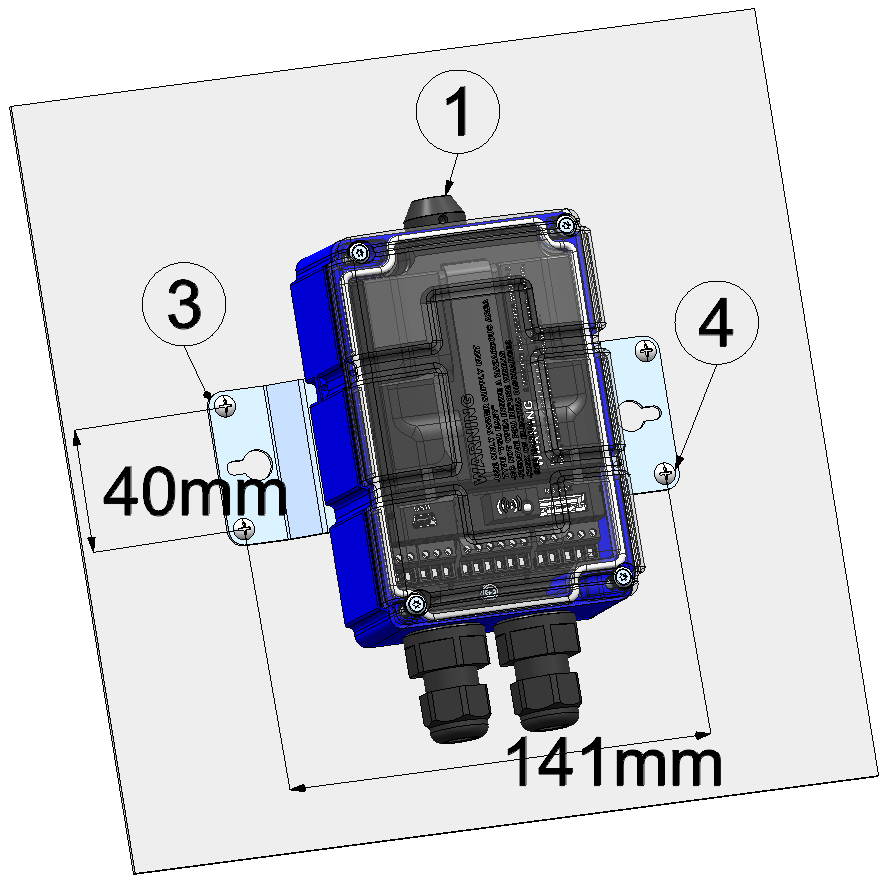

If you want to use the tapping screws (4) included in the equipment set to secure the assembly loop (3) to the wall, drill four 6-mm holes in the wall using the drill template as a guide in accordance with the dimensions in the diagram Step 2 of the wall mounting.If you want to use your own fastening screws you can use the drill guide provided in the equipment set to determine the position of the holes. The diameters are then determined by the screws that are being used and any wall plugs that may be required.
- Securing the 4-Channel
Data Logger to the wall:
If you want to use the tapping screws (4) included in the equipment set, first of all insert the supplied wall plugs into each of the four drill holes before screwing the 4-Channel Data Logger with the attached assembly loop (3) to the wall (see Step 2 of the wall mounting).If you are using your own screws, you must also insert the wall plugs into the holes before mounting the 4-Channel Data Logger with the attached assembly loop (3) to the wall (see Step 2 of the wall mounting).
