Pipe assembly
The optional "Pipe mounting kit for housing 86x126 (206.660)" equipment is required for the pipe assembly.
| 1 | 4-Channel Data Logger | 3 | Assembly loop (included in the scope of delivery of 206.660) |
| 2 | Delta PT M3.5x8 Torx 15 (included in the scope of delivery of 206.660) | 4 | Cable binder (included in the scope of delivery of 206.660) |

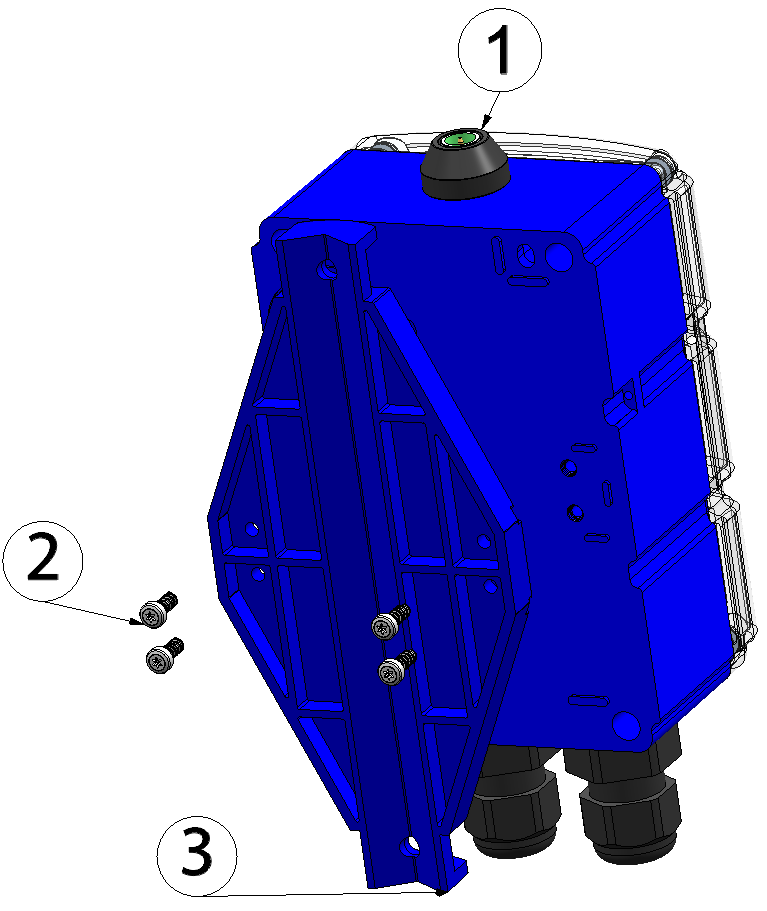

- First attach the assembly loop (3) using the screws (2) included in the "Pipe mounting kit for housing 86x126 (206.660)" equipment set to the 4-Channel Data Logger (see Step 1 of the pipe assembly ).

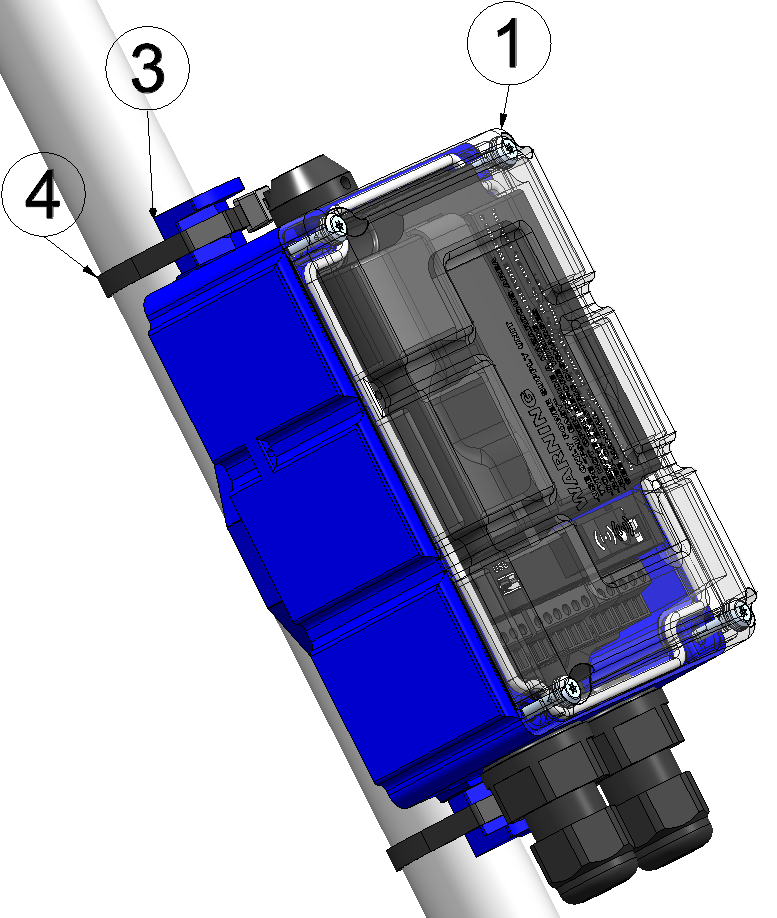

- Position the 4-Channel Data Logger with the attached assembly loop (3) on the pipe and use the supplied cable binders (4) to secure the 4-Channel Data Logger (see Step 2 of the pipe assembly).
