Top-hat rail assembly
The optional "DIN rail mounting set for housing 86x126 (206.634)" equipment is required for the top-hat rail assembly.
| 1 | 4-Channel Data Logger | 3 | Assembly loop (included in the scope of delivery of 206.634) |
| 2 | Delta PT M3.5x8 Torx 15 (included in the scope of delivery of 206.634) |

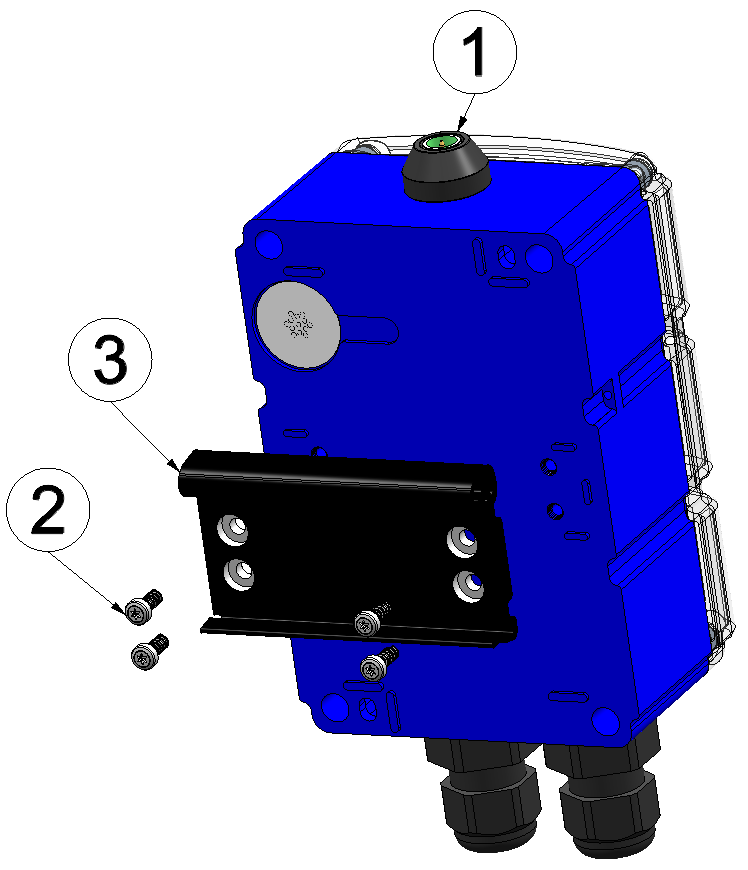

- First attach the assembly loop (3) using the screws (2) included in the "DIN rail mounting set for housing 86x126 (206.634)" equipment set to the 4-Channel Data Logger (see Step 1 of the top-hat rail assembly ).

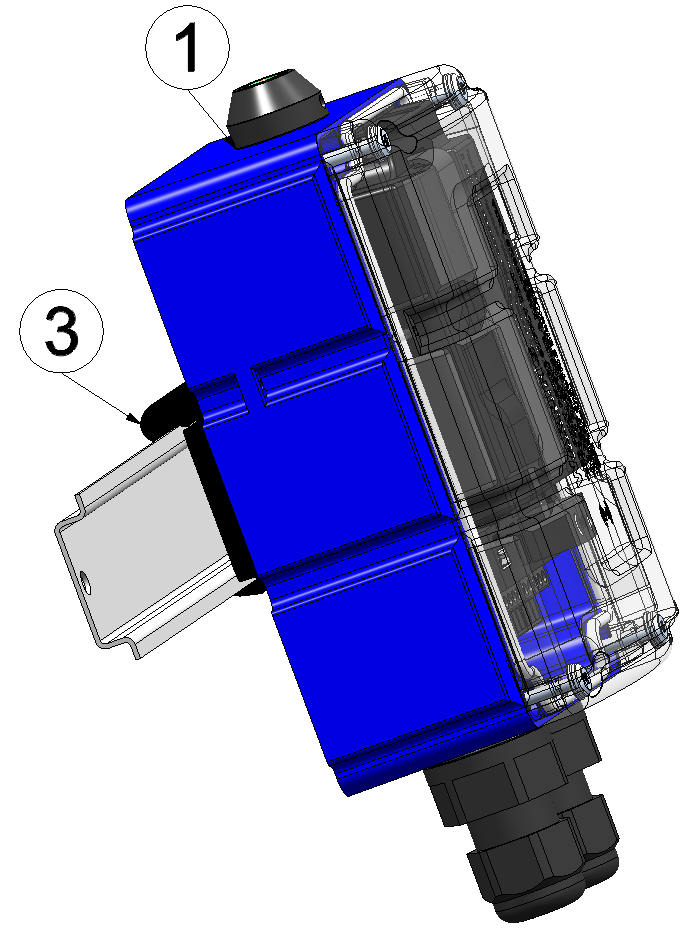

- Place the assembly loop (3) onto the top edge of the top-hat rail. When turned slightly around the horizontal axis of the 4-Channel Data Logger with the assembly loop (3) attached, the assembly loop (3) engages on the top-hat rail (see Step 2 of the top-hat rail assembly).
