Wall mounting
The mounting brackets required for wall mounting have already been mounted on the 4-Channel Data Logger during production.
Note: The
equalisation rail on the front of the 4-Channel
Data Logger connects
the earth terminal to the two lower mounting brackets. If you mount the device on a
conductive, earthed pipe, no additional earthing is required.
| 1 | 4-Channel Data Logger | 3 | Screw (max. diameter: 4mm) |
| 2 | Mounting bracket |

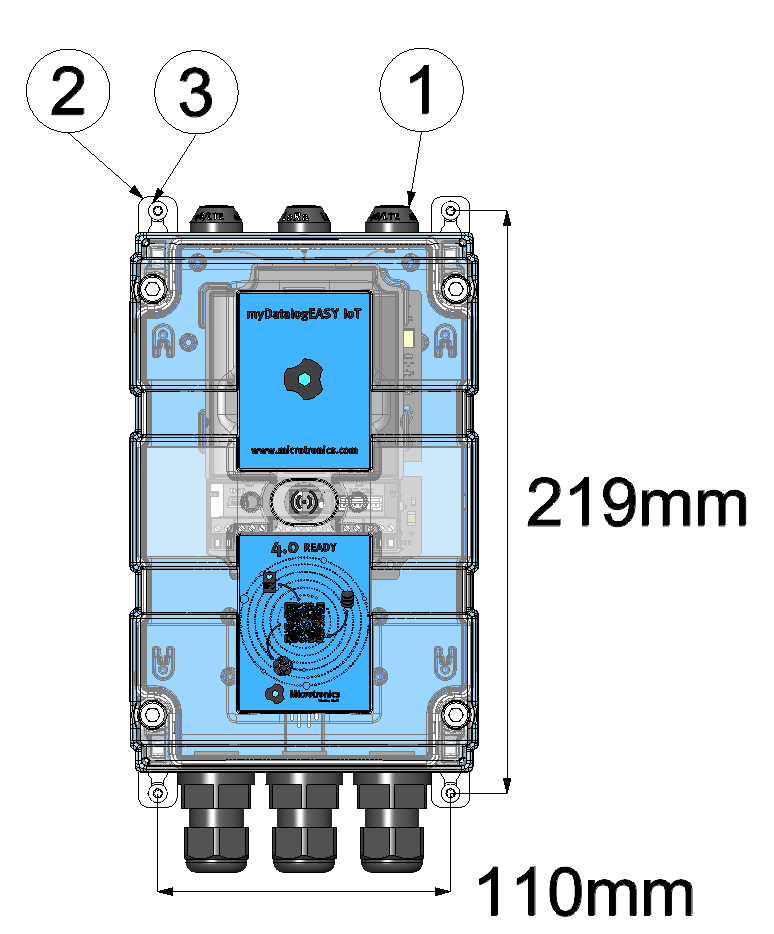

- Drill the four holes for mounting in accordance with the dimensions specified in figure Wall mounting. The diameters are determined by the screws that are being used and any wall plugs that may be required.
- If necessary, insert a wall plug into each of the four drilled holes before you screw the 4-Channel Data Logger with attached mounting brackets (2) to the wall (see Wall mounting).
