Pipe mounting

For the installation on a pipe the optional accessory "Pipe mounting set 30-250 mm (301191)" is required. If the 4-Channel Data Logger and the Pipe mounting set 30-250 mm are ordered together, the mounting loops included in the standard scope of delivery are replaced by those for the installation on a pipe and are mounted on the 4-Channel Data Logger prior to shipment.

Note: The equalisation rail on the front of the 4-Channel Data Logger connects the earth terminal to the lower mounting bracket. If you mount the device on a conductive, earthed pipe, no additional earthing is required.

Pipe mounting

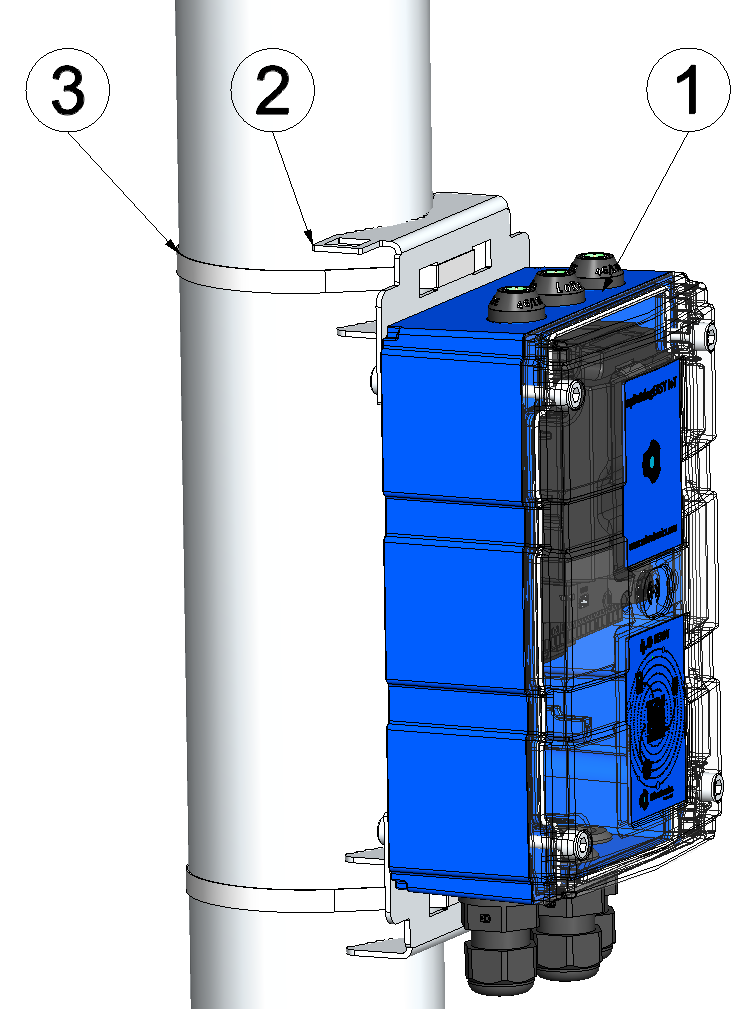

1 4-Channel Data Logger 3 Tightening strap (for pipe diameter 30-250 mm)
2 Loops for pipe mounting (for pipe diameter 30-250 mm)
  1. Thread the tightening straps (3) through the appropriate openings in the mounting loops (2).
  2. Position the 4-Channel Data Logger with attached mounting loops (2) on the pipe and use the provided tightening straps (3) to fasten the 4-Channel Data Logger .
