"Power supply 24V 0,63A for top-hat rail mounting " that can be integrated in the housing
Note: The Power supply
24V 0,63A for top-hat rail mounting (301066) is an
order option that cannot be ordered separately and installed by the customer himself. Also, it
can only be ordered in combination with the order option Top-hat rail DIN
(301070).

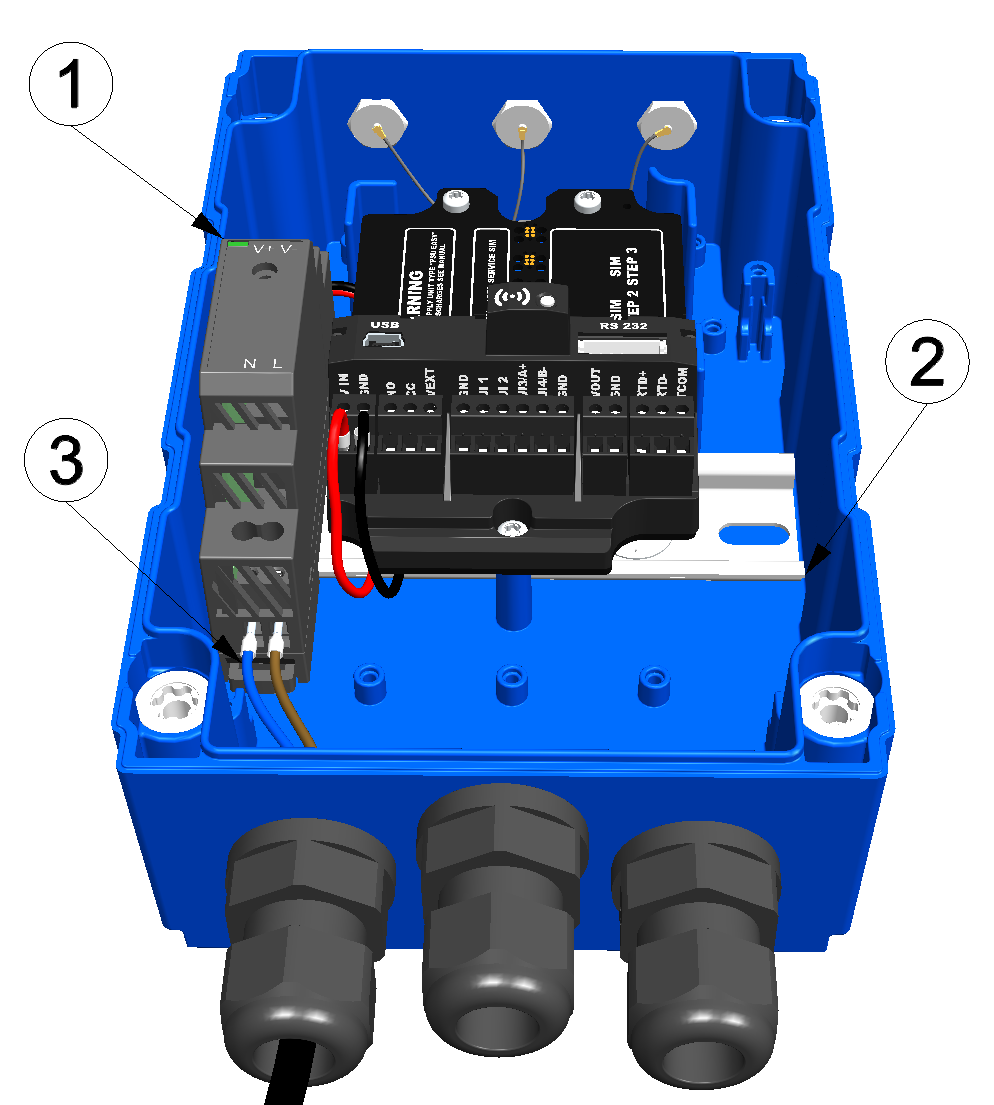

Connection of the 230VAC supply (view without power supply unit)
| 1 | Power supply 24V 0,63A for top-hat rail mounting | 3 | 230VAC supply lines |
| 2 | Top-hat rail DIN |
| L | Phase |
| N | Neutral conductor |
| +V | 24VDC output voltage (has already been connected to V IN of the main terminal block during production) |
| -V | Ground (has already been connected to GND of the main terminal block during production) |
All steps and safety instructions in chapter Connecting the sensors, actuators and power supply also apply when using "Power supply 24V 0,63A for top-hat rail mounting ". The only difference is, that the 230VAC supply lines have to be connected to the terminals "L" and "N" of the Power supply 24V 0,63A for top-hat rail mounting instead of the terminals "V IN" and "GND" of the main terminal block.
Important: The wire cross section of the 230VAC supply line must be chosen to match
the circuit breaker that may be present in the 230VAC supply circuit. If no circuit breaker
is present, a suitable type must be added (The max. power input of the Power supply
24V 0,63A for top-hat rail mounting is 0,5A ). In this case, the rated current of the added circuit breaker and the wire cross section
of the 230VAC supply line must be matched.
