Attaching the housing for outdoor installation to a wall
To attach the "Housing for outdoor installation 300x200x150mm (301173)" to a wall, the "Wall mounting set for housing 300x200x150mm(301185)" is required as an additional accessory. If the 4-Channel Data Logger , the Housing for outdoor installation 300x200x150mm and the Wall mounting set for housing 300x200x150mm are ordered together, the 4-Channel Data Logger is installed in the housing for outdoor installation (incl. connection of antenna cables) and the brackets for installation on a wall are mounted on the housing prior to shipment.

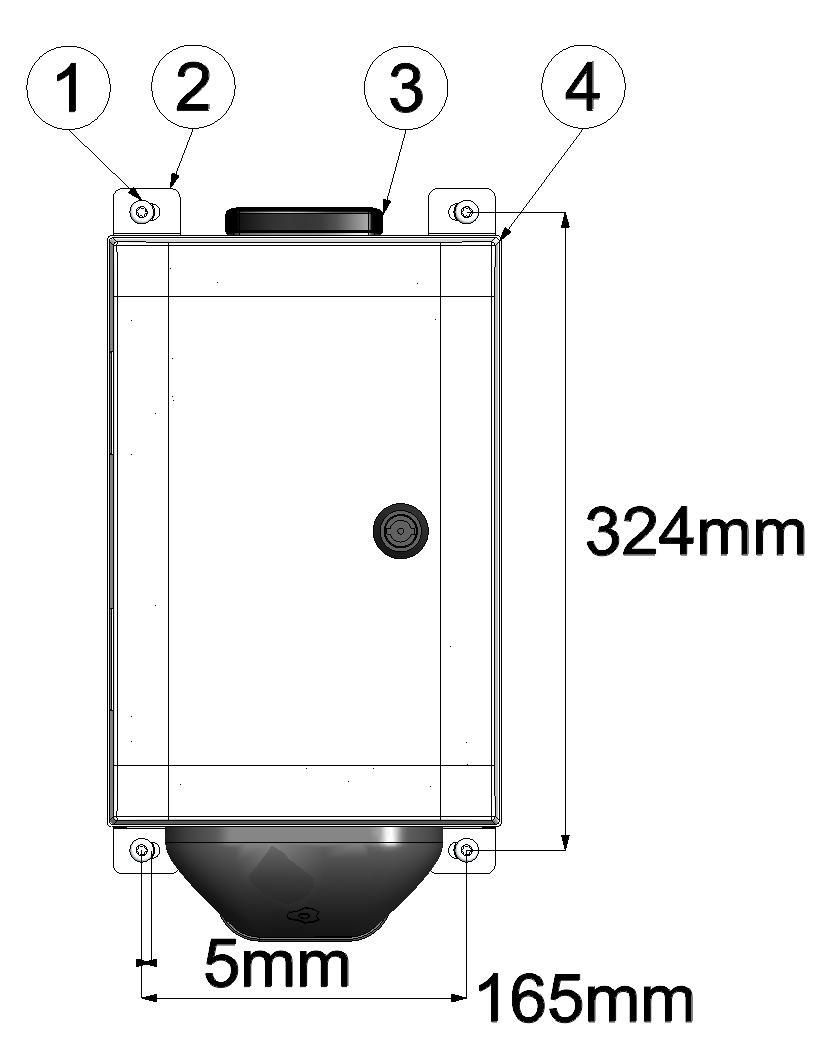

| 1 | Screw (max. diameter: 8mm) | 3 | Multiband antenna |
| 2 | Mounting bracket | 4 | Housing for outdoor installation 300x200x150mm |
- Drill the four holes for mounting in accordance with the dimensions specified in figure Wall mounting. The diameters are determined by the screws that are being used and any wall plugs that may be required.
- If necessary, insert a wall plug into each of the four drilled holes before you screw the Housing for outdoor installation 300x200x150mm with the installed mounting brackets (2) to the wall (see Wall mounting).
