Attaching the housing for outdoor installation to a pipe

To attach the "Housing for outdoor installation 300x200x150mm (301173)" to a pipe, the " Pipe mounting set for housing 300x200x150mm (301184)" is required as an additional accessory . If the 4-Channel Data Logger , the Housing for outdoor installation 300x200x150mm and the Pipe mounting set for housing 300x200x150mm are ordered together, the 4-Channel Data Logger is installed in the housing for outdoor installation (incl. connection of antenna cables) and the brackets for the installation on a pipe are mounted on the housing prior to shipment.

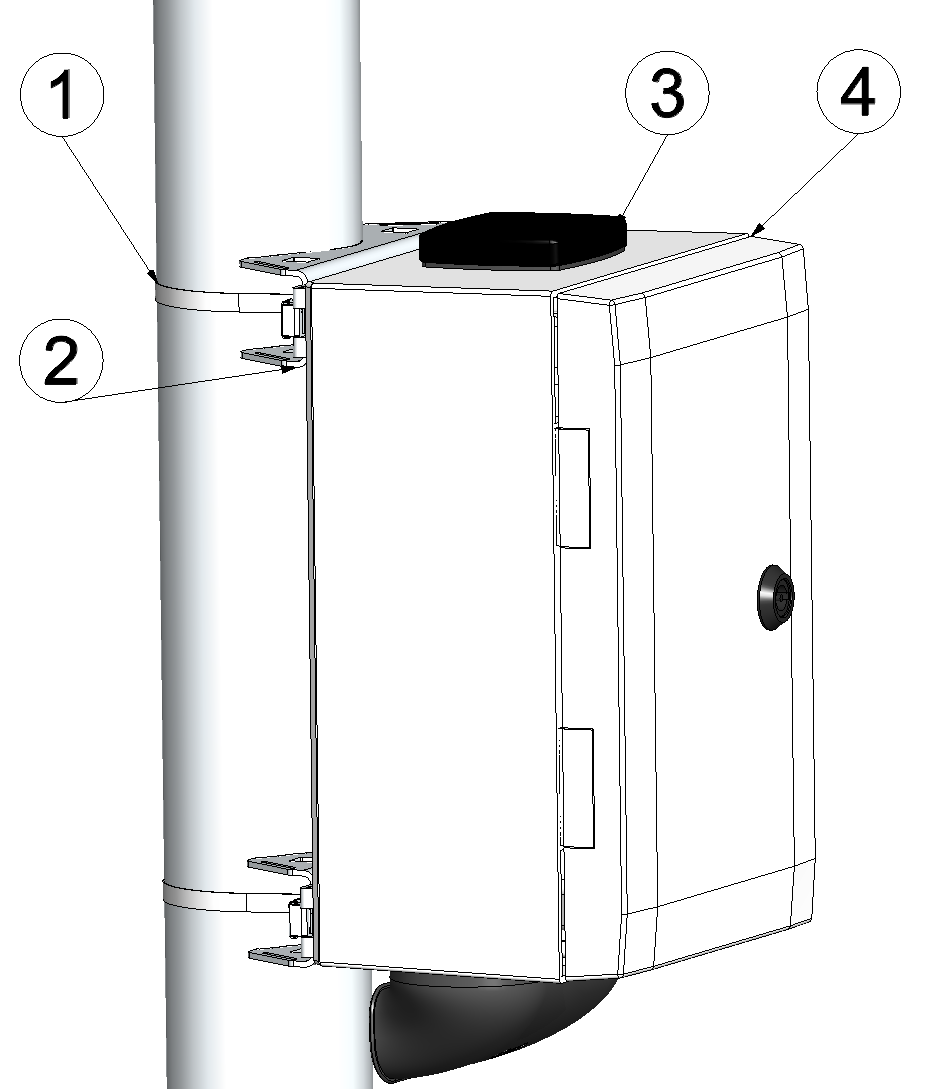

Pipe mounting

1 Tightening strap (for pipe diameter 60-300 mm) 3 Multiband antenna
2 Bracket for pipe mounting (for pipe diameter 60-300 mm) 4 Housing for outdoor installation 300x200x150mm
  1. Position the Housing for outdoor installation 300x200x150mm with the installed mounting brackets (2) on the pipe and use the tightening straps (1) icluded in the scope of delivery to attach the Housing for outdoor installation 300x200x150mm .
